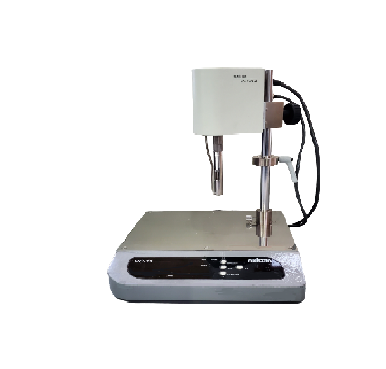

Malcom PC-10AA スパイラル粘度計 (100～2000Pa.s, 3～20rpm)

Rotor Type: AA

Viscosity Range 100～2000（Pa･s） (1000～20,000P)

Speed Range (N):3～20rpm FIX：10rpm

Shear Rate (D): 0.6×Ns-1

Min. Sample Amount: 5cc

Measurement Accuracy: ±5% of indicated value(100～800Pa･s), ±10％ of indicated value(800～2,00Pa･s)

Speed Accuracy: ±2％(100～800Pa･s), ±4%(800～2000Pa･s)

Temp. Measurement: 0～50℃　Resolution: 0.1℃ Accuracy: ±0.5℃

Rotor Material: SUS

Digital Display: Viscosity, Temp, rpm

Digital Output: USB・RS232C ※1

Recorder Output: Viscosity, Temp

Calibration: According to the standard calibration solution KF96 liquid or semi-standard options for viscosity calibration JIS Z8809

Power Supply: Viscosity & Temp.

Outer Dimension: 260(W)×260(D)×346(H)（mm）

Weight: Approx. 4.6kg (including Sensor part, approx. 0.6kg)

Option

Proprietary software: VAM-5

Calibration Fluid: Semi-standard calibration fluid KF96 100cc or 300cc

Spare Rotors: Outer rotors: RO-1A, Inner rotors: RI-1A

Communication Cable: USB cable, Proprietary 232C cable
