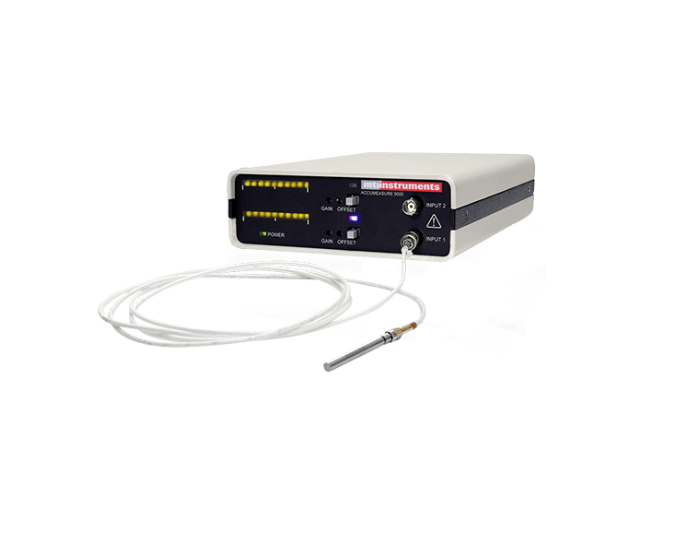

MTI instrument AS-9000/2D Ultra-high Precision Capacitive Gap (0 ~12.5mm; 2CH; digital display)
生産者: MTI instrument Model: AS-9000/2D P/N: 8000-6557 - 連絡先
Accuracy: 0.02% FSR RMS
Min. Range: 25µm/ 1mil
Stand-Off: 25mm (0.98″)
Resolution: 0.000075%/ √Hz FSR RMS
Interface: Analog
Number of Channels : 2
Measurement Range: 0 to 12.5mm (0 to 0.5 in.)
Resolution (% of Full Scale) RMS: 0.0000167
Accuracy (% of Full Scale): ± 0.02%
Frequency Response : Standard Filter Modules Available (10Hz, 100Hz, 200Hz, 500Hz, 1kHz, 2kHz or 5kHz)
Temperature Stability: ± 0.01% FSR/ °C
Analog Output 0-10 Vdc: BNC
Power Requirements: 85 to 265 Vac; 47 to 440 Hz
Summing Amplifier: Standard in dual channel units
Operating Temperature: 4 to 38°C (40 to 100°F)
Dimensions : 240x160x50mm (9.5x6.3x2.0in.)
Weight : 2.3 kg (5 lbs)
