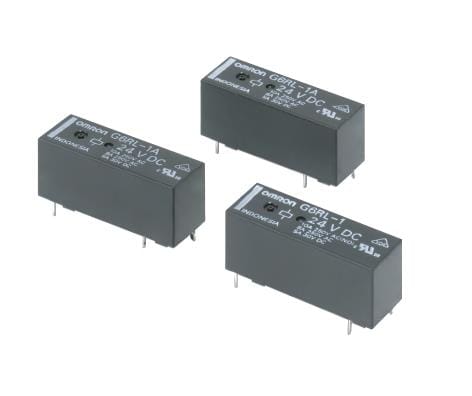

Omron Electronics G6RL-1A-DC12 ロープロファイル 10A スイッチング 12VDC ロープロファイル SPST-NO
生産者: Omron Electronics Model: G6RL-1A-DC12 - 連絡先
Width: 10 mm
Height: 12.3 mm
Length: 28.5 mm
Coil Type: Non-Latching
Unit Weight: 7.800 g
Coil Current: 18.3 mA
Coil Voltage: 12 VDC
Contact Form: SPST (1 Form A)
Mounting Style: Through Hole
Coil Resistance: 654 Ohms
Coil Termination: Solder Pin
Contact Material: Silver Alloy (Ag)
Power Consumption: 220 mW
Switching Voltage: 250 VAC, 30 VDC
Relay Contact Form: 1 Form A (SPST-NO)
Contact Termination: Solder Pin
Contact Current Rating: 10 A
