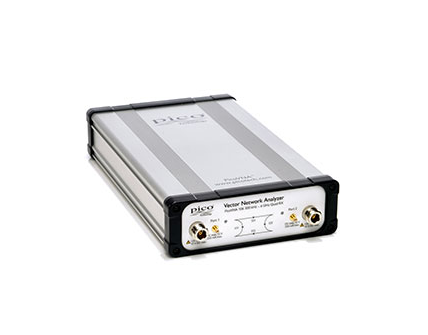

PICO PicoVNA 108 Vector network analyzer (300 kHz~8.5 GHz)

Frequency range: 300 kHz to 8.5 GHz

Frequency setting resolution: 10 Hz

Frequency accuracy: 10 ppm max With ambient of 23 ±3 °C

Frequency temperature stability: ±0.5 ppm/ºC max Over the range +15 °C to +35 °C

Harmonics: –20 dBc max With test power set to < –3 dBm

Non-harmonic spurious: –40 dBc typical

Phase noise (10 kHz offset):

0.3 MHz to 1 GHz: –90 dBc/Hz

1 GHz to 4 GHz: –80 dBc/Hz

> 4 GHz: –76 dBc/Hz

Test signal power

≤ 6 GHz: +10 dBm ~ –20 dBm

> 6 GHz: + 6 dBm ~  –20 dBm

Power setting resolution: 0.1 dB

Power setting accuracy: ±1.5 dB

Reference input frequency: 10 MHz ±6 ppm

Reference input level: 0 ±3 dBm

Reference output level: 0 ±3 dBm

Miscellaneous:

Controlling PC data interface: USB 2.0

Support for third party test software: Dynamic Link Library (DLL) as part of user interface software

External dimensions (mm): 286 x 174 x 61 (L x W x H) excluding connectors

Weight: 1.9 kg

Temperature range (operating): +15 °C to +35 °C

Temperature range (storage): –20 °C to +50 °C

Humidity: 80% max, non-condensing

Vibration (storage): 0.5 g, 5 Hz to 300 Hz

Power source and current: +12 to +15 V DC, 22 W

Power source connector: 5.5 mm diameter hole, 2.1 mm diameter centre contact pin.

Centre pin is positive.

Host PC requirements Microsoft Windows 7, 8 or 10

2 GB RAM or more
