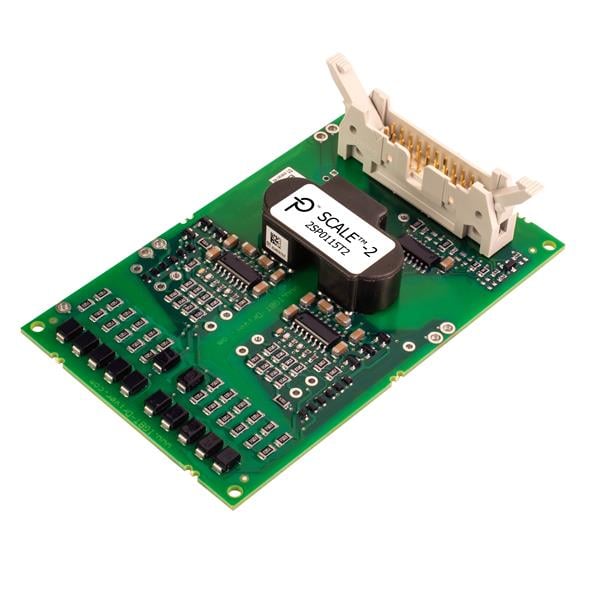

Power Integrations 2SP0115T2A0-FF600R12ME4 Half-Bridge ONLY for Infineon FF600R12ME4 module
生産者: Power Integrations Model: 2SP0115T2A0-FF600R12ME4 - 連絡先
Width: 62 mm
Height: 28.5 mm
Length: 100 mm
Fall Time: 10 ns
Rise Time: 5 ns
Unit Weight: 97.189 g
Output Power: 1 W
Mounting Style: Through Hole
Output Current: 15 A
Number of Drivers: 2 Driver
Number of Outputs: 2 Output
Input Voltage - Max: 15.5 V
Input Voltage - Min: 14.5 V
Supply Voltage - Max: 15.5 V
Supply Voltage - Min: 14.5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 20 C
Collector- Emitter Voltage VCEO Max: 1.2 kV
