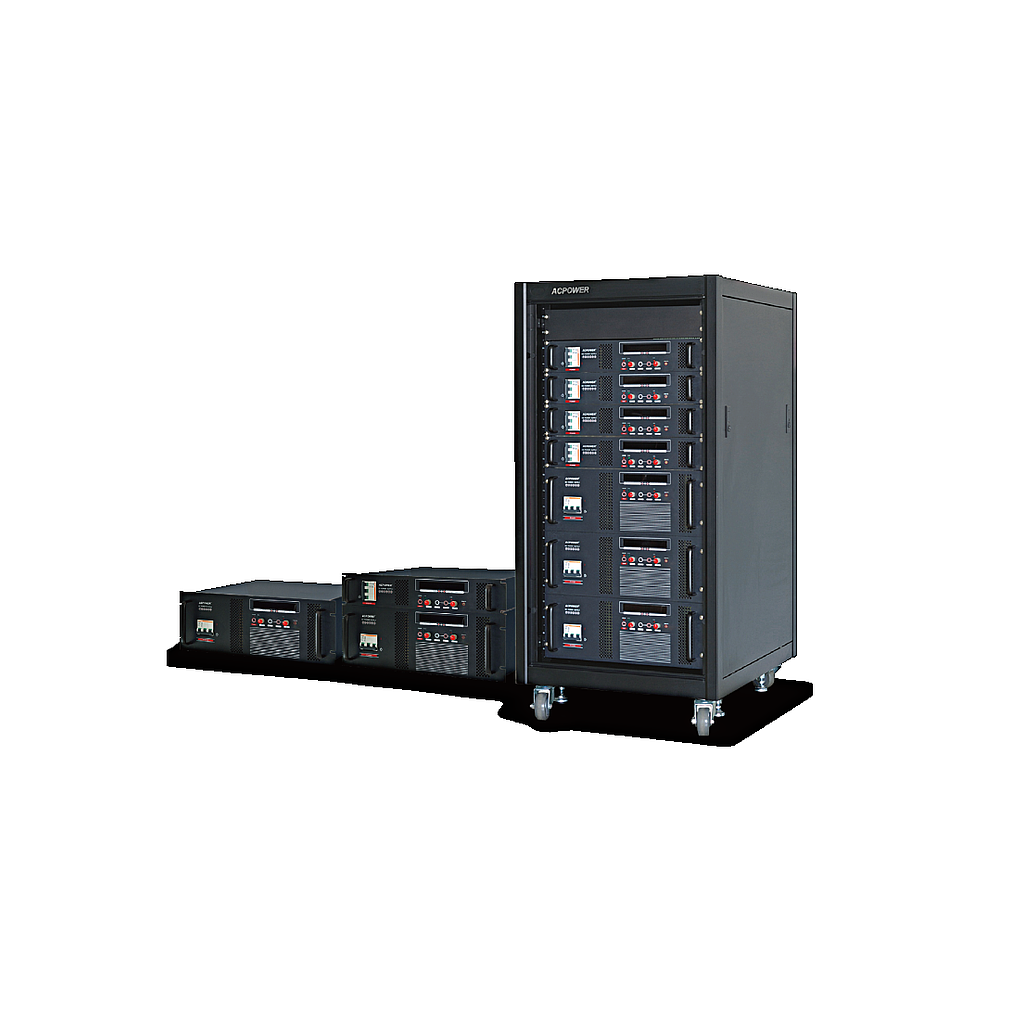

Preen ADC-0400050 ラックマウント DC 電源 (2kW/40V/50A)

Capacity: 2kW

INPUT

Rated Voltage *1: 187~253 Vac 1 Ø 2W+G

Current: Single-Phase 220VAC: 17A

Frequency: 47~63Hz

OUTPUT

Voltage:  40V

Current: 50A

Ripple:  <0.15%

Voltage Adjustment:  0~100% adjustable

Current limit adjustment:  10~100% adjustable

Over-voltage adjustment:  10% given value~110% given value adjustable

Power adjustment rate:  < ± 0.05% full scale

Load adjustment rate:  < ± 0.05% full scale

Transient response time *3:  < 1ms (load changes from 50% to 100% or from 100% to 50%)

OTHER SPECIFICATION

Efficiency (at rated input, max load): >0.85

Circuit type: Switching power supply

Protection function: Over voltage, over current, short circuit, over temperature

Local control

- Voltage meter: 3 1/2digital meter (Option 4 1/2digital meter)

- Current meter: 3 1/2digital meter (Option 4 1/2digital meter)

- Indicator light: Abnormal, external control, constant voltage, constant current

- Pre-set: Output voltage, output current, output over current, reset

Remote control

- Compensation: 0~3V

- Control: Output voltage, output current 0~100% adjustable through external 0~5Vdc Voltage; External control and reset

- Monitor: Remote control to output voltage, output current from 0 to 100% through external 0~5Vdc voltage

Environment

- Operation temperature: 0 ~ 50 °C

- Storage tempetature: -26 ~ 65 °C

- Humidity: 0~90% ( non-condensing )

- Cooling mode: Wind enter from the front and out in the back. Can be installed with rack from top to bottom.

- Noise: < 55dB / 1m ( fan speed control )

Withstand voltage: Input to crust 2200Vdc/1min without arc /4mA

Insulation Resistance: Input to crust 100M (500Vdc)

Electromagnetic Compatibility(EMC): Input EMI filter.

MECHANICAL SPECITICATION

Input mode: Terminal strips

Output mode: Copper busbar

Structure: 19'' 483 mm , xU rack type

Dimension (H×W×D): 88 x 430 x 500 mm/3.5 x16.9 x 19.7 inch

Weight: 14kg/ 30.86Ibs

*1 Please contact for other voltage specification.

*2 Height is 6U and weight is 50kg

*3 Load changes from 50% to 100% or from 100% to 50%

* Specifications for line regulation and load regulation are under full scales.
