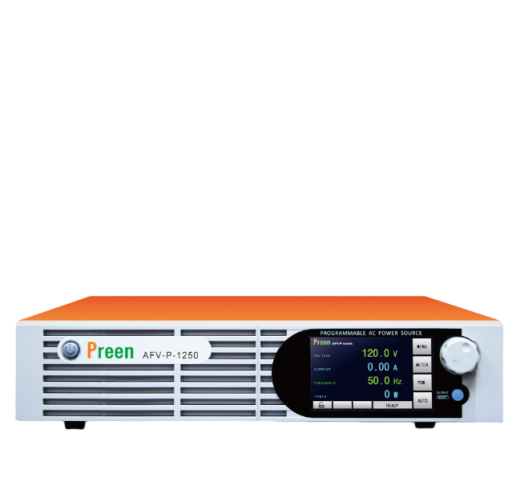

Preen AFV-P-1250A High Performance Programmable AC Power Source (1.25kVA/310V/5-2000Hz)

INPUT

Phase: 1Ø / 2 Wire + G

Voltage: 98~132VAC / 196~264VAC

Frequency: 47 Hz - 63 Hz (opt. 400Hz)

Max. Current: 20A

OUTPUT

Power: 1250VA -1000W

Phase: 1Ø / 2 Wire + G

Voltage Ranges: 0 - 155Vrms / 0 - 310Vrms, user selectable

Voltage Accuracy: ± ( 0.5 % of setting + 0.1% F.S.)

Voltage Resolution: 0.1Vrms

Frequency:  5-2000Hz

Frequency Accuracy: ±0.02%

Frequency Resolution: 0.1Hz, 1Hz

Max. Current (RMS): 10A / 5A

Max. Current (Peak): 45A / 22.5A

Total Harmonic Distortion (THD): ≦0.3% at 40-100Hz, ≦0.5% at 101-500Hz, ≦0.8% at 501-1000Hz (Resistive Load)

Line Regulation: ± 0.1V

Load Regulation: ≦0.07% F.S. (Resistive Load)

Response Time: ≦ 300uS

Crest Factor: ≧ 3

Inrush Current: ≧ 4.5 times of max. output current (r.m.s)

DC OUTPUT

Power: 500W

Voltage Ranges: 0 - 210V / 0 – 420V

Max. Current: 5A / 2.5A

Ripple & Noise (RMS): ≦ 0.15%

MEASUREMENT

Voltage Range: 0 - 420Vrms

Voltage Accuracy: ±(0.2% of reading + 5 counts)

Voltage Resolution: 0.1V

Frequency Range: 5- 2000Hz

Frequency Accuracy:  ±0.1Hz at 5.0 - 500Hz, ±0.2Hz at 501 - 2000Hz

Frequency Resolution: 0.1Hz

Current Range: Hi: 1 - 12A / Lo: 0.005 - 1.2A

Current Accuracy: ±(1% of reading + 5 counts) at 5.0 - 500Hz, ±(1% of reading + 10 counts) at 501 - 2000Hz

Current Resolution Hi: 0.01A / Lo: 0.001A

Peak Current Range: 0 - 45A

Peak Current Accuracy: ±(1% of reading + 5 counts) at 5.0 - 500Hz, ±(1% of reading + 10 counts) at 501 - 2000Hz

Peak Current Resolution: 0.1A

Power Range: Hi: 100 - 1200W / Lo: 0 - 120W

Power Accuracy:  ±(2% of reading + 10 counts) @ 5 - 500Hz, ±(2% of reading + 15 counts) @ 501 - 2000Hz

Power Resolution: Hi: 1W / Lo: 0.1W

GENERAL

Efficiency: ≧ 77% at max. power

Protection: OVP, OCP, LVP, OPP, OTP, RCP, Fan Fail

Remote Interface: Standard: RS232 / RS485 / Ethernet / USB / PLC Remote In&Out, Optional: GPIB / Analog Control

Over Current Foldback: CC Mode (Constant Current)

Output Sync Signal: ON, Event for Voltage or Frequency Change (Output signal 5V , BNC type)

Memories: 50 Memories & 1200 Steps (24 Steps/Memory);  50 Memories, 4 Hot keys (The last hot key can be adjusted)

Operating Temperature:  0˚C - 40˚C

Dimensions (HxWxD): 89 x 442 x 450 mm

Weight: approx. 20 kg
