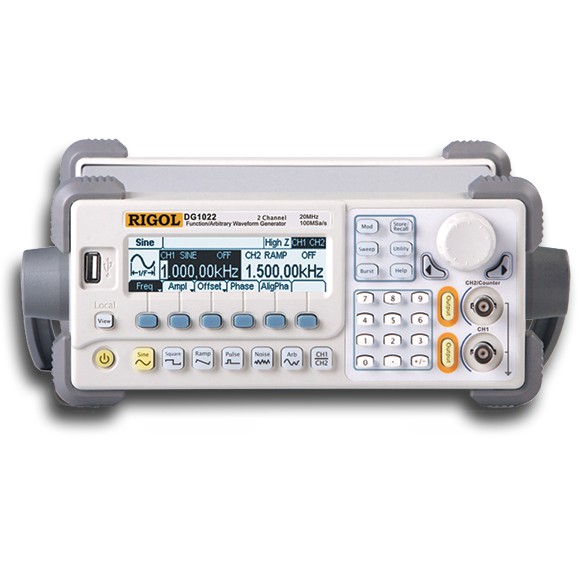

Rigol DG1022 波形発生器、20MHz
生産者: RIGOL Model: DG1022 起源: China - 連絡先
Channel : 2
Waveforms Sine, Square, Ramp, Triangle, Pulse, Noise, Arb
Sine 1 µHz ~ 20 MHz
Square 1 µHz ~ 5 MHz
Pulse 500 µHz ~ 3 MHz
Ramp/Triangle 1 µHz ~ 150 kHz
White Noise 5 MHz bandwidth (-3 dB)
Arb. 1 µHz ~ 5 MHz
Resolution 1 µHz
Accuracy
± 50 ppm in 90 days
± 100 ppm in 1 year
18°C ~ 28°C
Temperature Coefficient < 5 ppm/°C
Counter Function : Frequency, period, positive/negative Pulse width, Duty cycle
Counter Frequency Range : 100 mHz ~ 200 MHz
Black and White LCD Screen ( 256 x 64 )
Standard configuration interfaces: USB Device & USB Host, and support U-disc storage
Supply Voltage 100 ~ 240 VACRMS, 45 ~ 440 Hz, CAT II
Details
DG1000 Series Function/Arbitrary Waveform Generators
DG1000 series function/arbitrary waveform generators use Direct Digital Synthesis (DDS) technology. They could generate accurate, stable, clean, low distortion signals.
Features and Benefits
- Adopt advanced DDS technology; dual channel output; 100 MSa/s maximum sampling rate; 14 bits vertical accuracy
- Output 5 standard waveforms; built-in 48 arbitrary waveforms
- Abundant modulation functions: AM, FM, PM, FSK, linear/logarithm sweep and burst
- Abundant output and input: waveform output;synchronous signal output; external modulation source, external 10 MHz reference clock input,external trigger input
- Unique channel coupling and channel copy
- Built-in high precision and wide band counter, the measurement range: 100 mHz ~ 200 MHz (single channel)
- Standard configuration interfaces: USB Device & USB Host, and support U-disc storage
- Seamlessly interconnect with DS1000 series digital oscilloscope
- Powerful arbitrary waveform editing software“UltraWave”
- Support remote control by commands
- A variety of display modes
- Clear graphical interface
- Support Chinese and English menu and input
- Button-help makes information getting easier
- File management (support for USB flash device and local storage)
Advanced functions |
||||
|
|
|||
|
|
|
|
|
|
|
|
|
|
||
|
|
|||
|
|
|
|
|
|
|
|
||||
|
|
|||
|
|
|
|
|
|
|
|
||||
|
|
|||
|
|
|
|
|
|
|
|
|
|||
|
|
|||
|
|
 |
|||
For detailed performance parameters and technical specifications, refer to DG1000 Series Datasheet
