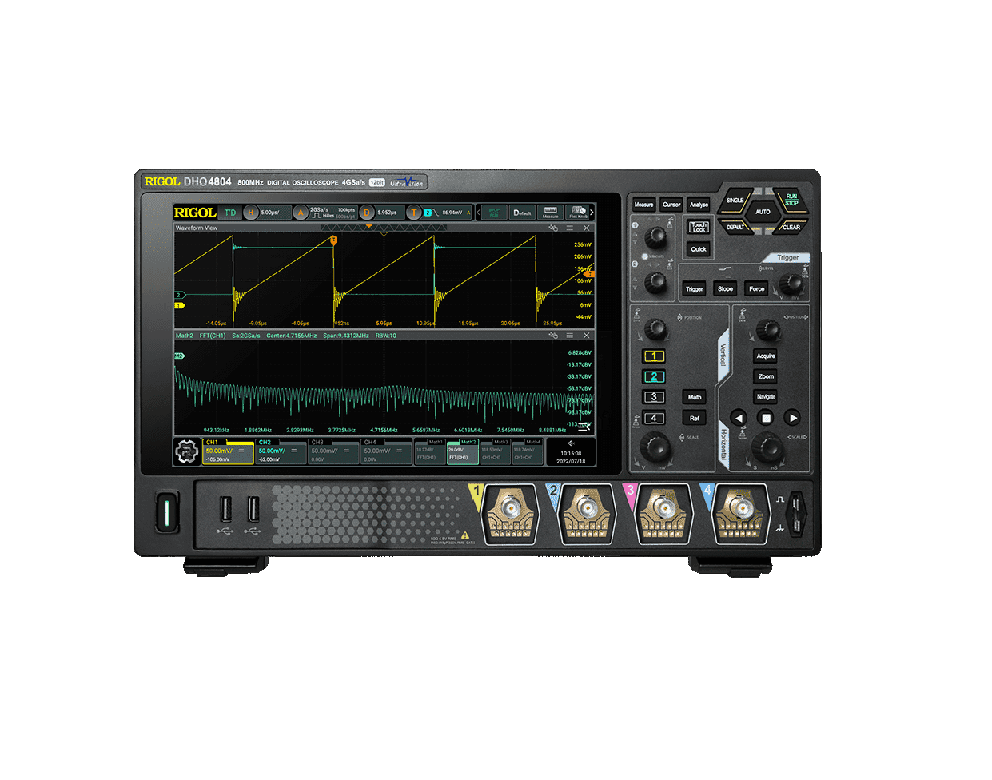

RIGOL DHO4204 デジタルオシロスコープ (200 MHz, 4 GSa/s, 250 Mpts, 4CH)

Analog Bandwidth 200 MHz

Input Channels: 4 analog channel inputs, 1 EXT channel input

Sampling Mode: Real-time sampling

Max. Sample Rate of Analog Channels: 4 GSa/s

ADC 12 bit

Rise time <1.75ns

Ultra-low noise floor at 18 μVrms in minimum

10.1'' 1280*800 HD touch display

Communication: LAN, USB & HDMI

41 auto measurements

Max. Waveform Capture Rate: >1,500,000wfm/s

Max. Memory Depth: 250 M

Input Impedance: 1 MΩ ± 1% ; 50 Ω ± 1%

Vertical Resolution: 12 bits

Accuracy[: < ±2.0%

Input Sensitivity Range: 100uV/div to 10 V/div

Time Base Range: 500ps/div to 1000s/div

Trigger mode: Auto, Normal, Single

Power supply: 100-240VAC, 50/ 60Hz, 400VA

Dimension: 358.14 mm (W)×214.72 mm (H)×120.62 mm (D)

Weight: 3.8 kg

Including: power cord, manual,  analog test lead.
