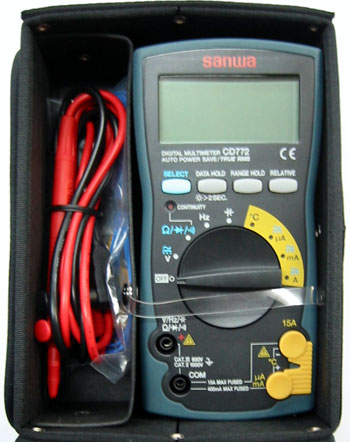

SANWA CD772 デジタルマルチメーター
生産者: SANWA Model: CD772 - 連絡先
DCV : 400m/ 4/ 40/ 400/ 1000V
ACV : 4/ 40/ 400/ 1000V
DCA : 400u/ 4000u/ 40m/ 400m/ 4/ 15A
ACA : 400u/ 4000u/ 40m/ 400m/ 4/ 15A
Resistance : 400/ 4k/ 40k/ 400k/ 4M/ 40MOhm
Capacitance : 50n/ 500n/ 5u/ 50u/ 100uF
Frequency : 5/ 50/ 500/ 5k/ 50k/ 100kHz
Temperature : -20~ 300C
Continuity : Buzzer sounds and LED lights up at between 0Ohm and 85Ohm ( ± 45Ohm) . Open voltage : approx. 0.4V
Diode Test : Open voltage : approx. 1.5V
Bandwidth : 45~ 500Hz ( 4V range) , 45~ 1kHz ( 40V range and above)
Fuse : 0.5A/ 1000V 30kA dia.6.35x32mm, 16A/ 1000V 30kA dia.10x38mm
Battery : R6P x2
Size / Weight : H166xW82xD44mm / approx. 360g
Standard accessories included : Test Lead ( TL-25) , Thermocouple K ype ( K-250CD) , Instruction manual
Details
Features:
■3-3/4 digits 4000 count
■AC True RMS
■Easy to read large LCD with Backlight
■Large breaking capacity fuse 30kA
■K-type thermocouple temperature measure ment -20℃〜300℃
■Thermo plastic elastomer, high resistance against drop shock
■Safety cap on current terminal
■Data hold, Range hold, Relative function
■Continuity check, Diode test
■Auto power off function (30min.)
■Maximum 20A can be measured if the measurement time is less than 10 seconds. (Take 10 minutes or longer intervals between measurements)
Display : numeral display 4000
Sampling rate : 3 times / sec.
AC frequency bandwidth : 45〜500Hz (4V range), 45〜1KHz (40V range and above)
Option:
Clamp probe : CL-20D, CL-22AD, CL33DC HV probe : HV-60
Temperature probe : K-8-800, K-8-650, K-8-300, K-8-500, K-8-250
K type adapter : K-AD
Carrying case : C-77, C-77H
Clip adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC
Test lead : TLF-120
■3-3/4 digits 4000 count
■AC True RMS
■Easy to read large LCD with Backlight
■Large breaking capacity fuse 30kA
■K-type thermocouple temperature measure ment -20℃〜300℃
■Thermo plastic elastomer, high resistance against drop shock
■Safety cap on current terminal
■Data hold, Range hold, Relative function
■Continuity check, Diode test
■Auto power off function (30min.)
■Maximum 20A can be measured if the measurement time is less than 10 seconds. (Take 10 minutes or longer intervals between measurements)
Display : numeral display 4000
Sampling rate : 3 times / sec.
AC frequency bandwidth : 45〜500Hz (4V range), 45〜1KHz (40V range and above)
Option:
Clamp probe : CL-20D, CL-22AD, CL33DC HV probe : HV-60
Temperature probe : K-8-800, K-8-650, K-8-300, K-8-500, K-8-250
K type adapter : K-AD
Carrying case : C-77, C-77H
Clip adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC
Test lead : TLF-120
