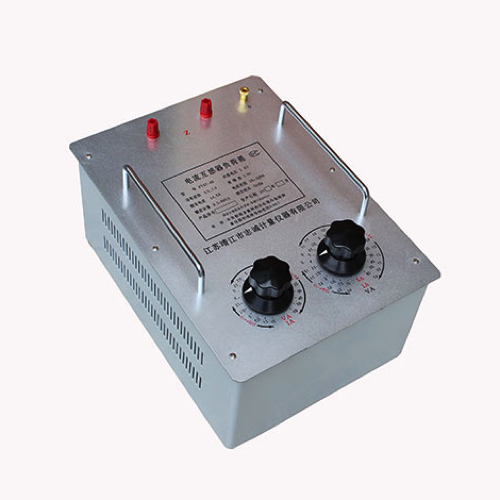

Sincere FY47 - 49 Current Transformer Burden (1A & 5A)
生産者: Sincere Model: FY47 - 49 - 連絡先
Rated Current: 1A & 5A
Power Factor and Rated Burden:
Standard No.: IEC60044 - 1
COSФ = 0.8: 2.5 / 3.75 / 5 / 6.25 / 7.5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 40 / 50 / 60VA
COSФ = 1.0: 2.5 / 3.75 / 5 / 6.25 / 7.5 / 10 va
Standard No.: ANSI / IEEE C57.13
COSФ = 0.5: 25VA, 50VA, 100VA, 200VA
COSФ = 0.9: 2.5VA, 5VA, 12.5VA , 22.5VA, 45VA
Accuracy Class: ±3%
Operation Range: (5%-120%) In
Frequency: 50Hz or 60Hz
Withstand Voltage: 2kV/1min
Insulation: Air
Operating Condition:
Temperature: 10 ℃ ～ +40 ℃
Relative Humidity (RH): up to 85% (max 90%)
Remark: The technical data in the above table is the normal value; we accept orders with special specifications from users.
