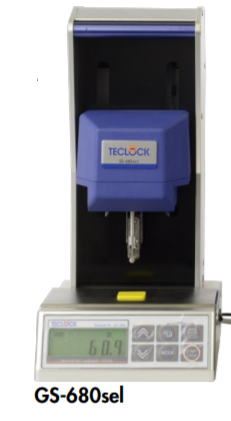

TECLOCK GS-680sel 自動ゴム硬度計(IRHD / M法)
生産者: TECLOCK Model: GS-680sel 起源: Japan 品物を保証します: 12 Month - 連絡先
Manufacturer: TECLOCK
Model: GS-680sel
Origin: Japan
Warranty: 12 months
Measuring accuracy: ±0.1 IRHD
Measuring range: 30~100 IRHD
Minimum indication unit: 0.1
Measurement part movable distance: 100mm
Measurable test-piece dimensions: W=160 / D=110 / H=100 mm
Outside interface: RS-232C
Power: AC 100~200V/Adapter DC 24V
Weight: 7.8 kg
Catalog
●Micro-hardness can be measured by 8/1 scale each durometer of type A, E, E2, OO, FO in addition to IRHD /
M method.
●Hardness of O ring and small rubber parts can be measured with totally automatic.
●Voice coil motor is adopted for load system. Friction and reproducibility of inner mechanism is improved, which is different from weight system.
●It is plug-in type that plunger (contact point) can be easily changed and recalibration on test method change is not
needed.
●As test piece table is wide, various measuring jigs can be set up.
