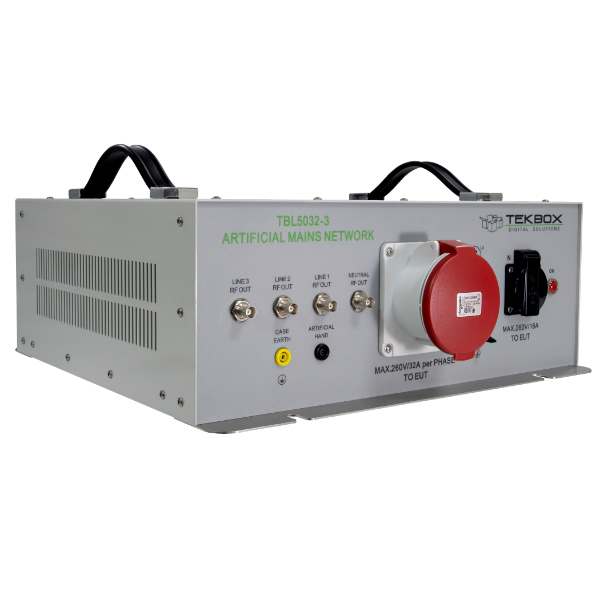

Tekbox TBL5032-3 ラインインピーダンス安定化ネットワーク
生産者: Tekbox Model: TBL5032-3 - 連絡先
Frequency range: 9 kHz to 30 MHz
Impedance: 50 Ω ║ (50 µH + 5 Ω)
Artificial hand: 220 pF + 511 Ω
Switchable PE: 50 Ω ║ 50 µH
250µH pre-filter
Separate RF outputs for each line and neutral
Air core inductors
Line voltage: max. 540V/260V / 50 – 60 Hz, CAT ‖
Max. current per line and neutral: 32A @ 23°C each 3-phase DUT socket: CEE/IEC60309, 3L+N+PE, 32A, female
Single-phase DUT socket: country specific
Power connector: CEE/IEC60309, 3L+N+PE, 32A, male
Measurement connectors: 50 Ω BNC
External 9 kHz high pass filter, N-male / N-female
Operating Temperature Range: +5°C … + 40°C; 5% to 80% RH
