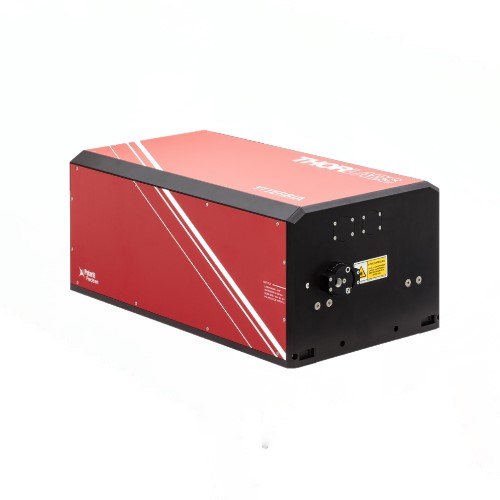

THORLABS FSL1030X1 イッテルビウムフェムト秒ファイバーレーザー光源
生産者: THORLABS Model: FSL1030X1 - 連絡先
Center Wavelength: 1035 nm ± 5 nm
User Tunable Repetition Rate: 1 – 11 MHz
Pulse Duration (FWHM): <220 fs (Typical)
<250 fs (Max)
Temporal Strehl Ratioc: >0.90 (Typical)
>0.85 (Min)
Pulse Energy from 1 - 5 MHz: 3 µJ
Average Power at Max Rep Rate: >20 W (Min)
Mode Field Diameter (1/e² ): 2.0 – 2.5 mm (Typical)
Mode Ellipticity: >0.8 (Typical)
Beam Quality (M²): <1.15 (Typical)
<1.2 (Max)
Polarization Extinction Ratio: >200:1
Power Stability: <1% RMS over 12 hours
Polarization: Linear, Vertical
Pointing Stability: <10 µrad/˚C (Typical)
(L x W x H): 569 mm x 320 mm x 238 mm (22.4" x 12.6" x 9.4")
Details
- 良質な取り決め
- オリジナル保証
- 宅配便
- 買い取り簡単化
