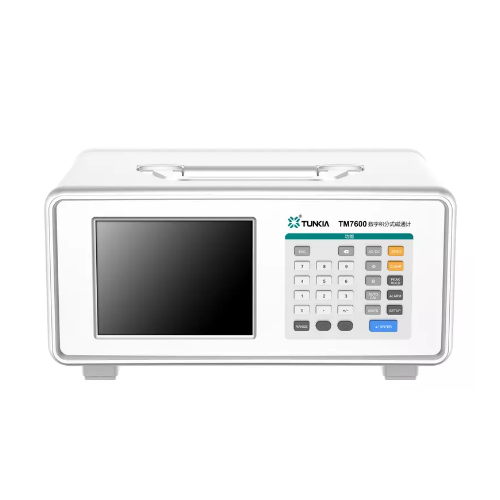

Tunkia TM7600 デジタル統合磁束計 (Class 0.02; 50 mV ~ 50 V; 0~999999 Wb)
生産者: Tunkia Model: TM7600 P/N: TM7600-200 - 連絡先
- Voltage Measurement
Range: 50 mV ~ 50 V
Resolution: 0.1 μV ~ 100 μV
Accuracy ± (ppm of reading + ppm of range) :
Class 0.02: 0.012 + 0.006
Temperature coefficient ± ppm*RD /°C @15℃～30℃: 10
- Magnetic Flux Measurement
Accuracy: Class 0.02
Method: Voltage measurements are digitally integrated against time
Range: Scope of the theory：0.0 Wb～999999 Wb
Minimum resolution: 10 nWb
Integration time Accuracy: ± 0.002%
Magnetic flux Accuracy: ± (0.02%*RD + 2 μWb)
Zero drift typical value: 0.5 μWb/min
Digits display: 6-digits
General Specification
Power Supply: AC (220±22) V，(50±2) Hz
Temperature Performance
Operating Temperature: ( 23 ± 5 )℃
Storage Temperature: -20°C～70°C
Humidity Performance
Operating Humidity: 40%～80% R·H, no condensation
Storage Humidity : < 80% R·H, no condensation
Weight: About 4 kg
Interface: Flux Coil Input, RS232, Control
Dimensions: 300 mm(L) x 230 mm(W) x 152 mm(H)
