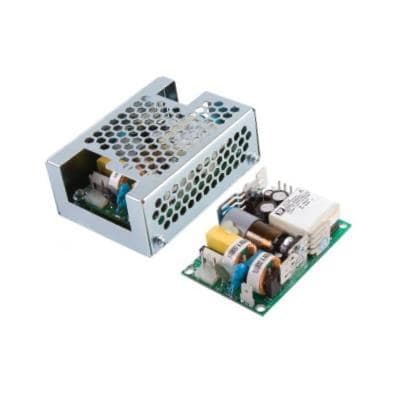

XP Power ECS45US12 AC-DC Converter PSU, 45W, INDUSTRIAL AND MEDICAL
生産者: XP Power Model: ECS45US12 - 連絡先
Width: 44.4 mm
Height: 24.2 mm
Length: 69.8 mm
Industry: Medical, Industrial
Approvals: ANSI/AAMI, CB, IEC60601-1, IEC60950-1, TUV
Compliance: ANSI/AAMI, CB, IEC60601-1, IEC60950-1, TUV
Efficiency: 90 %
Unit Weight: 100 g
Output Power: 45 W
Input Voltage: 80 VAC to 264 VAC
Mounting Style: Panel
Input Frequency: 47 Hz to 400 Hz
Load Regulation: Regulated
Isolation Voltage: 4 kVAC
Number of Outputs: 1 Output
Open Frame/Enclosed: Open Frame
Output Current-Channel 1: 3.75 A
Output Voltage-Channel 1: 12 VDC
Operating Temperature Range: - 20 C to + 70 C
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 20 C
