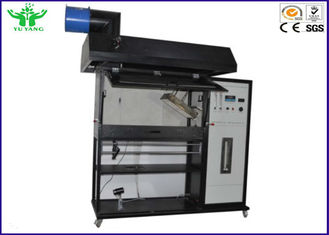

YuYang YY516高放射線放射火災試験装置(放射熱源)

  • 生産者: YuYang
    Model: YY516
    起源: China
    品物を保証します: 12 month
    • 要件クオート 要件クオート
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Parameter:

1. Power supply:AC 220V,50HZ;

2. Total power:2KW;

3. Timer: timing accuracy < 1s/h;

4. Heat flux measurement range: (0-15) Kw / m2;

5. Heat flux meter accuracy: ± 0.2Kw / m2;

6. Heat flux meter accuracy: <± 3%;

7. Thermal radiation temperature measurement range: 400-600 ℃, accuracy ± 0.5 ℃;

8. Blackbody temperature error: ± 5 ℃;

9. Exhaust speed: (2.5 ± 0.2) m / s;

10. Exhaust capacity: (39-85) m3 / min;

11. Porous refractory radiant panel size: 300mm × 450mm, about 900 ℃ high temperature capability;

12. Thermocouple: K diameter stainless steel sheathed thermocouple of 3.2mm;

13. Heat flux distribution requirements: at 200mm : (9.1 ± 0.4) KW / m2;

at 400mm : (5.0 ± 0.4) KW / m2;

at 600mm : (2.4 ± 0.2) KW / m2;

14. Combustion gases: propane (Customer);

15. Combustion gas flow rate: (0.026 ± 0.002) L / S;

16. Combustion burner: outer diameter ¢ 10mm inner diameter ¢ 6mm, burner tube hit 35 ¢ 0.7mm hole;

17. Flame height: 60 ~ 120mm adjustable;

18. Ignition system: high-voltage electronic ignition;

19. Powerful exhaust system: This machine is equipped with a powerful exhaust fan, when the test is completed, the system will start the exhaust fan exhaust outside.


Specification:

1. The apparatus is made of combustion chamber and control box;

2. Combustion chamber size: L1420 * W1200 * H2300 (mm);

3. Outline dimension:L2530*W1270*H2700mm(including electric cabinet);

4. Control box / combustion chamber material: high quality (t = 1.2mm) 304 is stainless steel, CNC machining, circular nice shape;

5. Blowtorch: made by our company, 304 stainless steel material, in full compliance with GB / T11785 standards;

6. Other mechanical parts are made of 304 stainless steel or A3 material thicker plating, anti-corrosion and rust.
