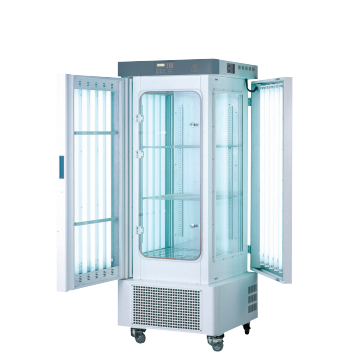

Tủ sinh trưởng thực vật Jeiotech GC-300TLH (300 lít, 5~50℃, 40~80%, CO2)

  • Cam kết chất lượng
  • Bảo hành chính hãng
  • Giao hàng tận nơi
  • Đơn giản hóa giao dịch



Model: GC-300TLH
Hãng sản xuất: Jeiotech
Xuất xứ: Hàn Quốc
Bảo hành: 12 tháng

Dung tích: 300 lít
Điều khiển: Bộ điều khiển PID
Nhiệt độ:
   Dải nhiệt độ: 5~50℃
   Độ biến động: 0.1℃
   Độ biến thiên: ±0.8℃
Độ ẩm:
    Dải độ ẩm: 40~80%
    Độ biến động: 3%
Đo Khí C02: dải đo: 300~5000 ppm/ cảm biến: NDIR CO2 sensor
ánh sáng: FL lamp (32W x 18EA)
Công suất làm nóng: 1300W
Kích thước: Bên trong:510×540×1100 mm
                 : Bên ngoài: 700×805×1900 mm
Khối lượng: 250 kg
Nguồn điện: AC230V, 1ph, 50Hz , 16 A  Cat.No.    AAHA1022K




Chi tiết

Datasheet

Operating Features

  • +5℃ to 50℃ (lamp off) / 10℃ to 50℃. (lamp on)
  • Max. to 35,000Lux for GC-1000.
  • Max. to 20,000Lux for GC-300 Models.
  • 40 to 80% RH for GC-300TLH. (at 20~35℃)
    50 to 90% RH for GC-1000TLH. (at 20~35℃)
  • 300 to 5,000ppm CO2 control. (optional)
  • Microprocessor PID control / Auto-tuning / Calibration.
  • Digital timer: 1 min to 99 hr 59 min.
  • 10 step programmable temperature, humidity, and illumination profiles and repeat the steps up to 999 cycles.(self-testing)

Constructional Features

  • High quality #304 grade stainless steel interior and dirt repellent powder coated exterior surface.
  • User-friendly door system.
    - Silicone packing for keep inner chamber perfectly.
    - External door with magnetic sealing for dual airtight.
    - Smoothly open to minimize damage of samples.
  • Wide inner tempered glass door provides a full view of the samples.
    - A tempered window provides a clear view of your specimen during testing.
  • Powerful air circulator for smooth airflow.
    - Air flow system very efficient for plant growth.
    - One propeller for GC-1000TLH / tangent blower and a sirocco fan for GC-300 Models.
  • High frequency electronic ballast lamps.
    - Reinforced Blue and Red spectrums lighting system for plant photosynthesis.
    - Economical with stable light and long life span.
    - Easy-to change bulbs.
  • Heat rise restraint.
    - Unique construction to minimize the heat from rising due to the luminous light source.
    - Designed to exhaust the heated air through the upper holes.
    (only for GC-1000TLH)
  • Easy cleaning of condenser air-filter.
    - To prevent deterioration of refrigeration system and keep filter dust free by periodically cleaning the filter.
  • Casters for easy mobility when installing or moving environ-mental testing chamber.
  • Electronic humidity sensor is fast acting and easy to calibrate.
  • Dual type water level sensor.
  • Adjustable water tank positions. (only for GC-300TLH)
  • Removable shelving and rounded inner chamber corners for easy cleaning.

Safety Features

  • Leakage breaker for power supply.
  • Over current protection.
  • Over heat protection with alarm.
  • Door opening alarm.
  • Low and empty water level alarm. (TLH Models only)
Model GC-300TL GC-300TLH GC-1000TLH
Chamber Volume
(L / cu ft)
300 / 10.6 1000 / 35.3
Control System Microprocessor PID controller
Temperature Range (℃ / ℉) 5 to 50 / 41 to 122 - Lamp off
10 to 50 / 50 to 122 - Lamp on
20 to 50 / 68 to 122 - with humidity
Fluctuation (±℃ / ℉) at 25℃ 0.1 / 0.18 - without humidity
Variation (±℃ / ℉) at 25℃ 0.8 / 1.43 - without humidity
Illumination Range (Lux) 0 to 20,000 0 to 35,000
Control (steps) 10 11
Lamp Fl lamp (32W×18EA) FL lamp (32W×16EA)
Metal lamp (400W×3EA)
Humidity Range
(RH %)
- 40 to 80 at 20 to 35℃ 50 to 90 at 20 to 35℃
70 to 90 at 36 to 50℃ 60 to 90 at 36 to 50℃
Fluctuation (±RH)at 60% RH - 3
Co2
(optional)
Range (ppm) 300 to 5,000
Sensor NDIR CO2 sensor
Refrigerant (HP) 1/2 3/4
Temp. Heater Power (W) 750×2EA 1,500×2EA
Humid. Heater Power (W) - 1300 1500
Dimension
(W×D×H)
Interior
(mm / inch)
510×540×1100 / 20×21.3×43.3 1200×800×1080 / 47.2×31.5×42.5
Exterior
(mm / inch)
700×805×1900 / 27.6×30.1×74.8 1410×1070×2150 / 55.5×42.1×84.7
Net Weight
(kg / lbs)
250 / 551.2 550 / 1212.5
Electrical Requirements (230V) 60Hz/12.5A 50Hz/12.5A 60Hz/16A 50Hz/16A 60Hz/30A 50Hz / 30A
Cat. No. AAHA1011K AAHA1012K AAHA1021K AAHA1022K AAHA1031K AAHA1032K
