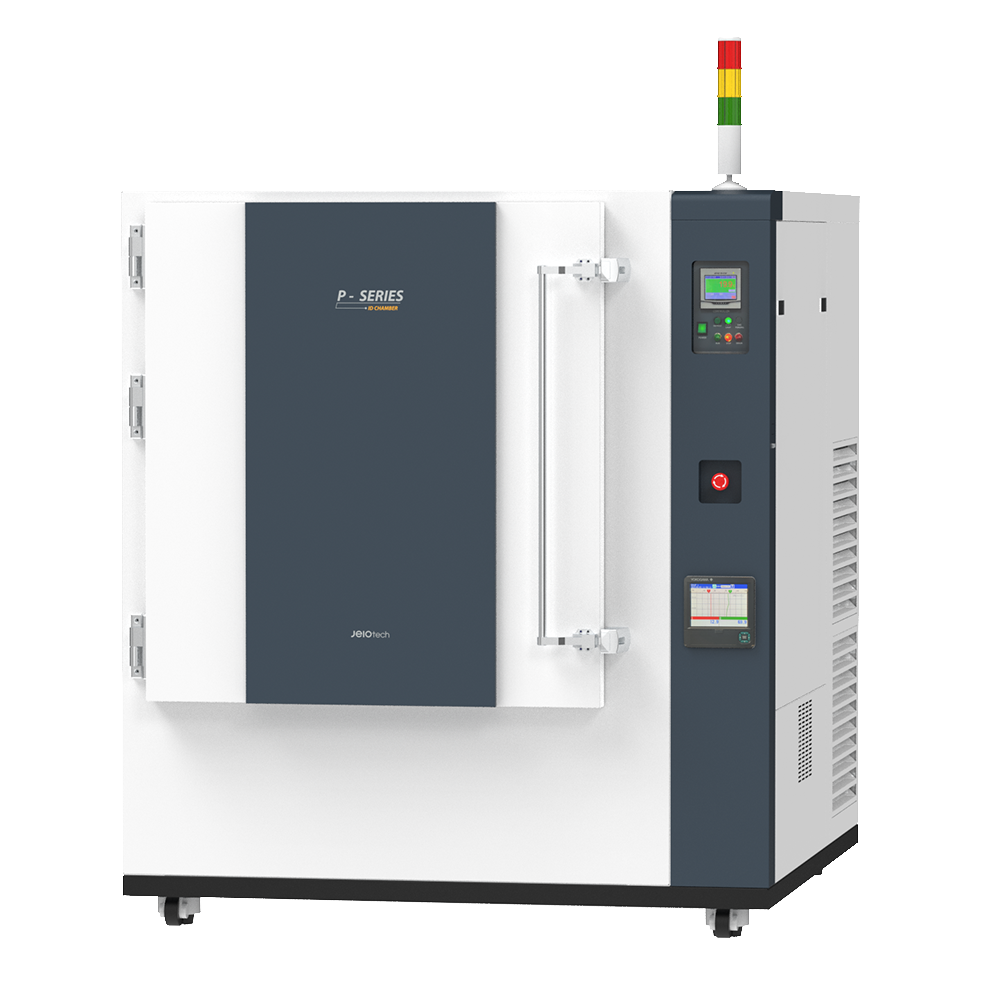

Tủ thử nhiệt độ Jeiotech PBV-100 (-25 đến 100℃,)

  • Hãng sản xuất: JEIOTECH
    Model: PBV-100
    • Yêu cầu báo giá Yêu cầu báo giá
  • Giá (chưa thuế) 464,947,500 VND
    Giá (bao gồm thuế) 511,442,250 VND
  • Gọi để có giá tốt

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

Dung tích buồng: 1000 lít
Hệ thống điều khiển: Lập trình, điều khiển bằng màn hình cảm ứng
Dải nhiệt độ: -25 đến 100 ℃
Thời gian làm nóng từ 25℃ đến 100℃ (phút): 38
Thời gian làm mát từ  25℃ đến -25℃ (phút): 42
Tải lớn nhất trên mỗi giá (kg): 45
Tổng tải cho phép (kg): 150
Kích thước bên trong (mm): 1000×910×1100
Kích thước bên ngoài (mm): 1720×1650×1534
Trọng lượng: 440 kg
Cổng giao tiếp: RS232
Nguồn điện (230V, 50Hz): 3ph / 29A

Chi tiết

Datasheet

Performance

  • Suitable for specific use such as heat treatment and drying process.
  • Microprocessor PID control / Temperature calibration / Automatic tuning.
  • Heat-resistant silicone packing completely blocks high heat leakage from the inner chamber.
  • Two-point door latch also enhances tightness to door closure.
  • Energy efficiency is achieved thanks to optimization of the insulation system.
    - Even if the unit is operating at max. temperature, the surface of the unit doesn’t allow high temperatures of over 51℃. (DIN EN 563)
  • Reliable design and production of door is guaranteed.
    - Evaluates the results after opening the door by 90 degrees and applying 50kg load to the point of 30cm from hinges.

Safety

  • User selectable operation mode after power interruption
    - ether Automatic run or Manual run.
  • Over-temperature protection.
  • Over-current and current leakage protection. (ELCB, earth leakage circuit breaker)
  • Independent safety fuse.
    - Important parts such as controller and heaters are highly secured from short circuit. Especially each heater has an individual fuse to completely break a short circuit.
  • Reversed-phase protection.
    - Electrical connection error indicator helps user to rapidly fix the connection.
  • Over-current protection of motor.
    - Automatic shut-off in situations where there is over-current to the motor.
  • Open door warning.
    - Heater and fan stop when the door is the open state.
  • Electric wiring panel access warning.
    - Automatic stop if the cover of electric wiring panel is opened.
  • Built in door lock with a key.

Convenience

  • Corrosion resistance stainless steel inner chamber.
  • Space efficient and easy loading chamber design.
    - Included two shelves for loading of large amounts of samples.
    - Heavy load shelving, rated for 40kg are also available. (optional)
  • User friendly LCD controller.
    - Colorful interactive touch type LCD controller.
    - Set point temperature and present temperature are clearly shown together on display.
    - Sufficient programmable control support.
    - Operating progress can be shown in graph mode for better data understanding.
    - Automatic start/stop can be programmed for unattended operations.
    - Display indicates abnormal temperature changes or power failures.
    - Three different language support. (English / Chinese / Korean)
    - Temperature and other operating parameters can be recorded using a six channel digital recorder. (optional)
  • Computer interface.
    - RS-485 communication port (optional) enables connection up to maximum 32 units. Simultaneous monitoring and operating of multiple units is an available feature.
    - Program patterns are simple to set with the use of our software.
    - Easy to check status of real-time operations. Graph data supports easy understanding.
    - Storage and documentation of programs.
    - Data with saving capabilities in excel and text format.
    - Storage of program information, backup of value settings, recovery, and temperature values.
    - RS-232 communication port as standard offer
