- Thông số kỹ thuật:
Lực thử ban đầu: 10 kgf (98.07 N), sai số cho phép ±2.0%
Tổng lực thử: 60 kgf, 100 kgf, 150 kgf
Thang đo độ cứng hỗ trợ: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
Tiêu chuẩn áp dụng:
+ GB/T230.1, GB/T230.2 (tiêu chuẩn quốc gia), JJG112 (quy trình kiểm định)
+ GB/T2848, GB/T3773 (tiêu chuẩn gốc), EN10109, ASTM E18, ISO 6508
Đơn vị chuyển đổi: Brinell, Rockwell, Vickers
Tiêu chuẩn chuyển đổi: Dữ liệu thông số kỹ thuật
Hiển thị độ cứng: 10 kgf (98.07 N), sai số cho phép ±2.0%
Độ chính xác hiển thị (HR): 60 kgf, 100 kgf, 150 kgf
Thời gian giữ lực thử tổng: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
Thời gian giữ lực thử ban đầu: Theo tiêu chuẩn quốc gia GB/T230.1, GB/T230.2 và quy trình kiểm định JJG112
Thời gian phục hồi đàn hồi: Theo các tiêu chuẩn GB/T2848, GB/T3773, EN10109, ASTM E18, ISO 6508
Chuyển đổi lực thử: Brinell, Rockwell, Vickers
Màn hình hiển thị độ cứng: Màn hình cảm ứng màu 8 inch
Độ phân giải hiển thị (HR): 0.1
Thời gian giữ lực thử ban đầu & tổng lực thử: Theo tiêu chuẩn GB/T230.1, GB/T230.2 và các quy định JJG112
Thời gian phục hồi đàn hồi: Theo GB/T2848, GB/T3773, EN10109, ASTM E18, ISO 6508
Chuyển đổi lực thử: Brinell, Rockwell, Vickers
Điều khiển tải: Theo chuẩn ASTM, ISO, GB/T
Điều khiển hệ thống nâng đầu đo: Tự động
Phương pháp nâng đầu đo: Tự động một bước
Thống kê dữ liệu: Tự động tính giá trị lớn nhất, nhỏ nhất, giá trị trung bình, sai số lớn nhất, số lần đo...
Xuất dữ liệu: Máy in, cổng giao tiếp, kết nối máy tính
Kích thước bàn đặt mẫu (mm): 350 × 320
Chiều cao tối đa của mẫu thử: 170 mm
Khoảng cách từ đầu đo đến thân máy: 160 mm
Kích thước máy (mm): 570 × 320 × 760
Nguồn điện: 220V / 50Hz
Khối lượng máy: 130 kg

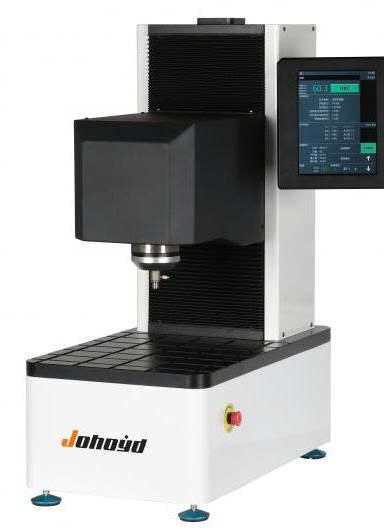

Main functions and features of the instrument
1. The 8-inch LCD touch screen can intuitively display the hardness value, converted hardness, test method, test force, brightness, initial test force holding time, total test force holding time, elastic recovery time, number of measurements, statistical data, test time and other test processes. The test process is intuitive and clear;
2. The system has a built-in calibration function, which can automatically adjust the error range of 80-120%, or calibrate the instrument separately with low and high values
3. When testing the curved surface, it is automatically corrected according to the standard curved surface radius;
4. It can store 100 sets of test data, and can view the test data at any time, delete the current data or clear all test data, and set the product name;
5. The test force units can be converted to each other, and the conversion units are: (Kgf, N)
6. It can simultaneously display: average value, number of tests, product name;
7. The main interface can display 4 conversion scales at the same time, and can switch between: national standard (GB), American standard (ASTM) and international (ISO) standard. A total of 20 measurement scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HK, HBW, HS, HBS, HV, Rm (tensile strength),
8, The screen sleep time can be set, and it will automatically enter the sleep state after long-term inactivity, which is environmentally friendly;
9. The upper and lower limits of the measurement range can be set, which will be displayed on the main measurement interface, and the unqualified value will automatically prompt an alarm;
10. The operating system has 14 languages, which can be switched at will: Chinese, Traditional Chinese, English, Russian, German, French, Spanish, Portuguese, Turkish, Czech, Japanese, Korean, Thai, and Vietnamese;
11. Equipped with a built-in printer, the test data can also be exported to a USB flash drive via USB for storage and analysis (optional);
12. The structure is stable and does not deform, the pure white car paint is of high grade and has strong scratch resistance. It is still bright as new after years of use;
13. Our company has the ability to develop, design and produce independently, and our machines provide lifetime parts replacement and maintenance upgrade services;
The main uses and scope of the instrument:
1. Determine the Rockwell hardness of ferrous metals, non-ferrous metals and hard alloys:
2. Rockwell hardness of castings, annealed steel, normalized steel, non-ferrous metals and soft alloys;
3. Rockwell hardness of heat-treated materials such as quenching and tempering;
