- Thông số kỹ thuật:
Lực thử ban đầu: 3kgf (29.42N), sai số cho phép ±2.0%
Tổng lực thử: 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N)
Thang đo độ cứng: HR15N、HR30N、HR45N、HR15T、HR30T、HR45T、HR15W、HR30W、HR45W、HR15X、HR30X、HR45X、HR15Y、HR30Y、HE45Y
Tuân thủ tiêu chuẩn:
+ GB/T230.1, GB/T230.2 (Tiêu chuẩn quốc gia), JJG112 (Quy trình kiểm định)
+ GB/T2848, GB/T3773 (Tiêu chuẩn gốc), EN10109, ASTM E18, ISO 6508 (Tiêu chuẩn quốc tế)
Đơn vị chuyển đổi: Brinell, Rockwell, Vickers
Tiêu chuẩn chuyển đổi: ASTM, ISO, GBT
Hiển thị độ cứng: Màn hình cảm ứng màu 8 inch
Độ chính xác hiển thị (HR): 0.1
Thời gian giữ tổng lực thử: Có thể cài đặt từ 3–60 giây
Thời gian giữ lực thử ban đầu: Có thể cài đặt từ 0.1–4 giây
Thời gian phục hồi đàn hồi: Có thể cài đặt từ 0.2–5 giây
Chuyển đổi lực thử: Tự động
Điều khiển tải lực: Tự động
Điều khiển trục Z: Tự động
Chế độ nâng trục Z: Nâng tạm thời, nâng tự động, kiểm tra bằng một nút nhấn
Hiệu chuẩn giá trị độ cứng
Bù cong mặt cung: 09CB8317
Bù lực thử: 09CB8317
Xác định đạt/không đạt: 09CB8317
Thống kê dữ liệu: Tự động tính toán giá trị lớn nhất, nhỏ nhất, trung bình, sai số lớn nhất, số lần thử, v.v.
Xuất dữ liệu: Máy in, cổng giao tiếp, Kết nối máy tính
Chiều cao mẫu thử tối đa (mm): 270
Khoảng cách từ đầu thử đến thân máy (mm): 160
Kích thước tổng thể (mm): 560 × 210 × 810
Nguồn điện: 220V / 50Hz
Trọng lượng (Kg): 100

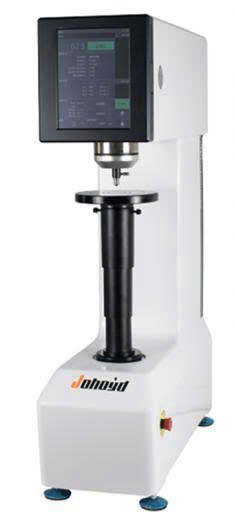

Main functions and features of the instrument
1. The 8-inch LCD touch screen can intuitively display hardness value, converted hardness, test method, test force, brightness, initial test force holding time, total test force holding time, elastic recovery time, number of measurements, statistical data, test time, etc.;
2. The system has its own calibration function, which can automatically adjust the error range of 80-120%, or calibrate the instrument separately with low and high values
3. When testing the curved surface, it is automatically corrected according to the standard curved surface radius;
4. It can display real-time force value and indentation curve;
5. It can store 100 sets of test data, and can view the test data at any time, or delete the current data or clear all test data;
6. The test force units can be converted to each other, and the conversion units are: (Kgf, N)
7. It can simultaneously display: average value, number of tests, product name;
8. The main interface can display 4 conversion scales at the same time, and can switch between: national standard (GB), American standard (ASTM) and international (ISO) standard. A total of 20 measurement scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HK, HBW, HS, HBS, HV, Rm (tensile strength),
9, The screen sleep time can be set, and it will automatically enter the sleep state after long-term inactivity, which is environmentally friendly;
9. The upper and lower limits of the measurement range can be set, which will be displayed on the main measurement interface, and the unqualified value will automatically prompt an alarm;
10. The operating system has 14 languages, which can be switched at will: Chinese, Traditional Chinese, English, Russian, German, French, Spanish, Portuguese, Turkish, Czech, Japanese, Korean, Thai, and Vietnamese;
11. Equipped with a built-in printer, the test data can also be exported to a USB flash drive via USB for storage and analysis;
12. The one-time molding structure of the casting shell is stable and does not deform, and the pure white paint has strong scratch resistance, and it is still bright as new after years of use;
13. Our company has the ability to develop, design and produce independently, and our machines provide lifetime parts replacement and maintenance upgrade services;
The main uses and scope of the instrument:
1. Determine the Rockwell hardness of ferrous metals, non-ferrous metals and hard alloys:
2. Rockwell hardness of castings, annealed steel, normalized steel, non-ferrous metals and soft alloys;
3. Rockwell hardness of heat-treated materials such as quenching and tempering;
