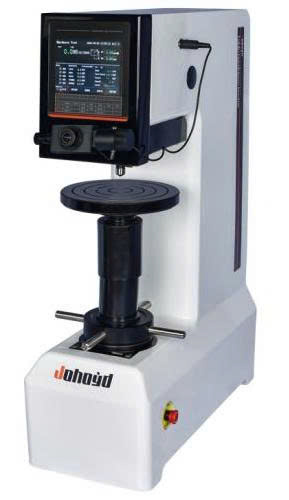

Máy Đo Độ Cứng Brinell Johoyd HBST-3000 (62.5kgf~3000kgf, 3.18 ~ 653 HBW)

- Thông số kỹ thuật:

Thước đo Brinell: HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100、HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000

Lực thử nghiệm: 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)

Điều khiển tải: Tự động (tải / giữ tải / dỡ tải)

Chiều cao tối đa của mẫu thử: 220 mm

Khoảng cách từ mũi thử đến tường ngoài: 135 mm

Khoảng cách từ mũi thử đến tường trên: 55 mm (Có thể tăng bằng cách tùy chỉnh mũi thử)

Đơn vị đo nhỏ nhất: 0.125 μm

Thời gian giữ tải: 0 ~ 60 giây

Dải đo độ cứng: 3.18 ~ 653 HBW

Độ phóng đại tổng cộng: 20X

Tiêu chuẩn thực hiện: EN ISO 6506, ASTM E-10-08, GB/T231.2, JJG150-2005

Đọc độ cứng: Tính toán tự động

Xuất dữ liệu: Máy in tích hợp, HyperTerminal

Nguồn điện: AC 220V ±5%, 50~60Hz

Kích thước (mm): 520 × 210 × 745

Trọng lượng thiết bị chính: Khoảng 125 kg

Main functions and features:

1. This machine has the characteristics of high precision, high repeatability and stability, simple operation, convenient and practical, and high cost performance;

2. Possesses level 10 test capability, and can test a wider range;

3. Equipped with digital display micrometer eyepiece and accurate data calculation system, the hardness value can be directly displayed with just one tap;

4. The system comes with a calibration function, which can manually adjust the input calibration instrument, and can also calibrate the eyepiece magnification.

5. Adjustable range of optical system brightness: 0-100

6. It can store up to 100 sets of test data

7. The operating system can be converted between Chinese and English

8. The main interface can display 5 conversion rulers at the same time

9. Equipped with a built-in printer to output the measurement data or connect to the computer to transmit the measurement data of the host to the computer for editing and saving;

10. Equipped with high-performance stepper motor to automatically load and unload the test force, the noise generated during the test is smaller

11. Using photoelectric sensor technology and microcomputer control system, it can automatically compensate, and the test results are accurate and stable;

12. Automatically enter the indentation diameter and directly display the hardness value, which can realize dual display of any hardness unit, avoiding the cumbersome check-up table;

13. Self-contained design of high-magnification LED optical measurement, high image clarity, adjustable brightness, long-term operation is not suitable for fatigue;

14. The shell is cast at one time, the structure is stable and does not deform, and it can work in a relatively harsh environment;

15. The surface is treated with the car paint process, which has strong scratching ability and is still bright as new after years of use;

Main purpose and scope of use:

1. It is suitable for the hardness tester test of metal materials with large grains, which can reflect the comprehensive performance of the material;

2. Cast iron, steel, non-ferrous metals, especially for softer metals, such as pure aluminum, lead, tin, etc.

3. It can be used to measure the hardness of some non-metallic materials such as hard plastics, bakelite, etc.
