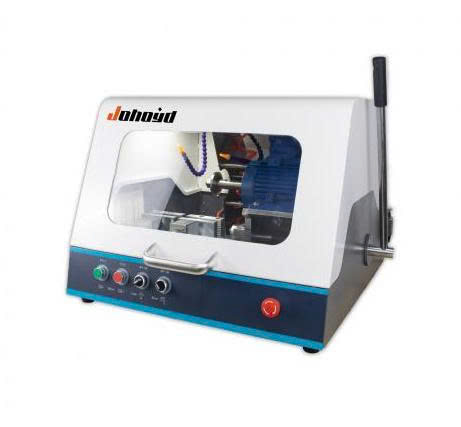

Máy cắt mẫu Johoyd HQG-100 (2800 vòng/phút, 2.2 kW)

Thông số kỹ thuật:

Phương pháp cắt: Thủ công, tiến dao theo trục Y

Kích thước đĩa cắt: Φ300 × 2 × Φ32 mm

Kích thước cắt tối đa: 100 × 100 mm

Tốc độ trục chính: 2800 vòng/phút

Công suất động cơ: 2.2 kW

Công suất máy: 2.8 kW

Bộ gá kẹp mẫu: Kẹp ren

Chiếu sáng: Đèn LED chống nước

Bể nước: Bể nước tuần hoàn tự động

Nguồn điện vào: 380V, 50Hz, ba pha bốn dây

Kích thước máy: 750 × 640 × 550 mm

Trọng lượng: 100 kg

Main functions and features

1. The main parts such as the shaft sleeve and the work surface are made of corrosion-resistant materials and have a long service life.

2. The workbench and the motor fixing frame are fixed and stable, and the surface is sandblasted, which is beautiful and durable

3. The workpiece is fixed with a quick clamp, which is convenient, fast, safe and reliable (optional)

4. The overall mechanism rotates smoothly, with low noise and long service life

5. The perspective adopts impact-resistant transparent PC board, which is safe and reliable

6. Waterproof LED lights are used for lighting, which is convenient for observing the entire cutting process

7. With cooling device and water tank, the coolant can be recycled, which is economical and efficient 8. The maximum cutting diameter is 100mm
