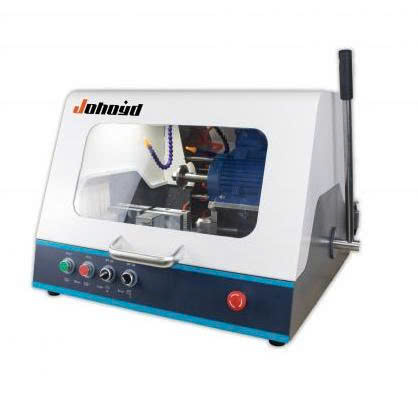

Máy cắt mẫu Johoyd HQG-80 (2800 vòng/phút, 2.2 kW)

Thông số kỹ thuật:

Phương pháp cắt: Thủ công, tiến dao theo trục Y

Kích thước đĩa cắt: Φ300 × 2 × Φ32 mm

Kích thước cắt tối đa: 80 × 80 mm

Tốc độ trục chính: 2800 vòng/phút

Công suất động cơ: 2.2 kW

Tổng công suất: 2.8 kW

Bộ gá kẹp mẫu: Gá kẹp ren

Chiếu sáng: Đèn LED chống nước

Bể nước: Bể nước tuần hoàn tự động

Nguồn điện vào: 380V, 50Hz, ba pha bốn dây

Kích thước máy: 750 × 640 × 550 mm

Trọng lượng: 100 kg

Main functions and features

1. The main parts and components such as the shaft sleeve and the work surface are made of corrosion-resistant materials with long service life.

2. The workbench and the motor fixing frame are made of aluminum alloy, and the surface is sandblasted, which is beautiful and durable.

3. The workpiece is fixed by quick fixture, which is convenient, fast, safe and reliable (optional)

4. The overall mechanism rotates smoothly, with low noise and long service life

5. The perspective adopts impact-resistant transparent PC board, which is safe and reliable

6. The waterproof LED light is used for lighting, which is convenient for observing the whole process of cutting

7. Equipped with a cooling device and a water tank, so that the cooling liquid can be recycled, saving and high-efficiency 8. The maximum cutting diameter is 80mm
