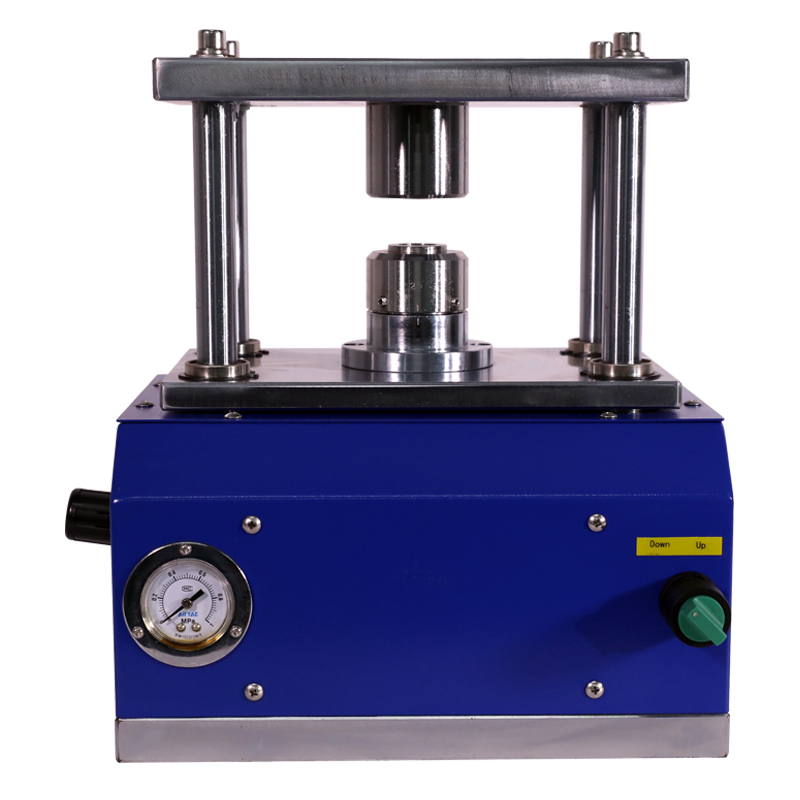

ACEY ACEY-BPS-1 Pneumatic Coin Cell Sealing Crimping Machine For Button Cell Assembly

Air source: 0.6～0.8MPa argon, nitrogen gas cylinder, or compressed air (compressed air is not recommended in the glove box)

Exhaust design: specially designed exhaust port, which can be connected externally through KF40 and other devices

Air consumption: about 480ml of air consumption for a single seal

Sealing pressure: manual control valve control, pressure 1MPa, recommended pressure 0.7MPa, accuracy within ±0.5%

Sealing stroke: 30mm

Dimensions: 295mm × 200mm × 335mm

Weight: 30kg

1. The lower mold is limited by a high-precision positioning ring to control the battery packaging height, so as to avoid excessive and unstable packaging pressure, which may cause damage to the battery and the sealing cup.

2. The inner ring of the upper mold sealing cup is equipped with a screw spring centering mechanism to ensure that in case the battery is stuck and cannot be removed during sealing, the button battery can be forced out by twisting the top screw.

3. Compressed air or inert gas cylinders are used to supply air. The compressed air exhaust is connected to prevent damage to the glove box atmosphere.

4. Precision mold design ensures accurate and reliable sealing forming, solid steel structure design, stable and safe use.

5. Pure pneumatic operation, no electricity, convenient and easy to use.
