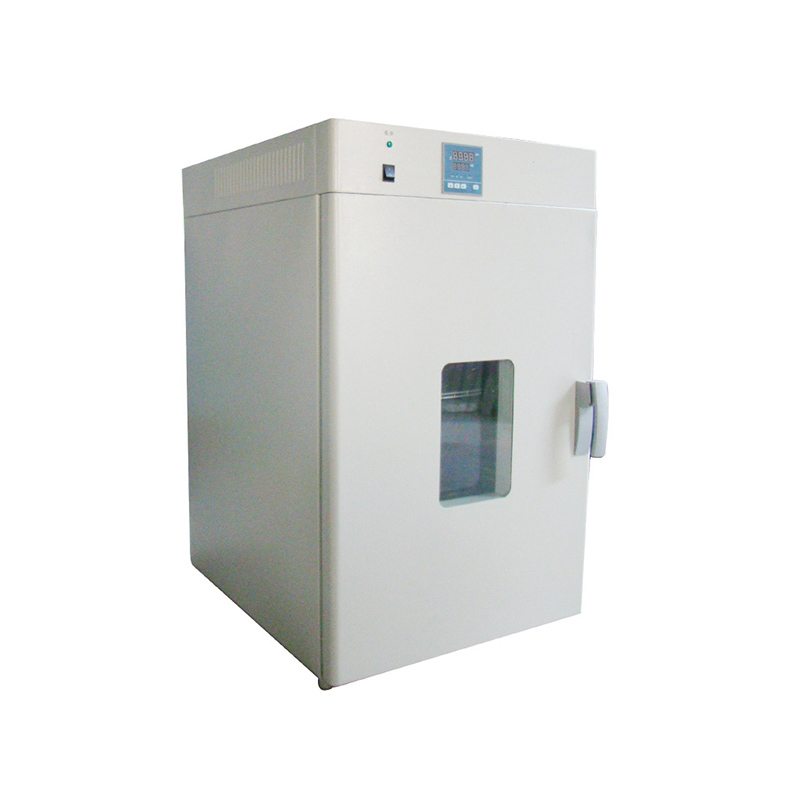

ACEY ACEY-LD-920 Blast Drying Oven (920L; RT+10~300℃)

Volume: 920L

Temperature control range: RT+10~300℃

Temperature resolution: 0.1 ℃

Temperature fluctuation: ± 0.5 ℃

Number of partitions: 4PCS

Timing range: 1~9999min

Power Supply: AC380V/50Hz

Rated power: 7.5KW

Size of liner: 1000X600X1600

Overall dimensions: 1140X790X1970

Options (optional):

SS- stainless steel (304, 316L)

SC-Independent Temperature Limit Controller

FE-fuji liquid crystal controller

LP-LED LCD Intelligent Program Controller (Section 18 and Section 30)

TH-reserved Ø25, 50, 80, 100mm test holes

PR-Paperless Recorder

TP-Printer (Heat Sensitive, Panel)

RC-Remote Communication with Computer (LP Option Required for R485 Interface)

HC-load-bearing partition (load-bearing 50kg, standard load-bearing 15kg)

1. Streamlined design, electrostatic plastic spraying on the surface of cold-rolled steel plate on the shell, stainless steel inner container, and easy cleaning without dead angle design.

2. Air duct circulation structure, which can force convection to simulate air circulation and make the inner container temperature uniform and stable.

3. Using microcomputer PID control, the system has automatic temperature control, timing, over-temperature alarm, LCD digital display, stable temperature control performance.

4. The box door is equipped with a large viewing angle observation window as standard, and heat insulation technology is adopted to make the temperature of the observation window within a reasonable range.

5. The studio adopts flexible shelves, and the shelves and quantity can be adjusted at will.

6. Using heat preservation technology and heat preservation materials, the temperature in the box is not easy to lose, reduce energy consumption and save energy.

7. According to user requirements, an independent temperature limit controller can be installed to double protect the safety of the system. (Optional)
