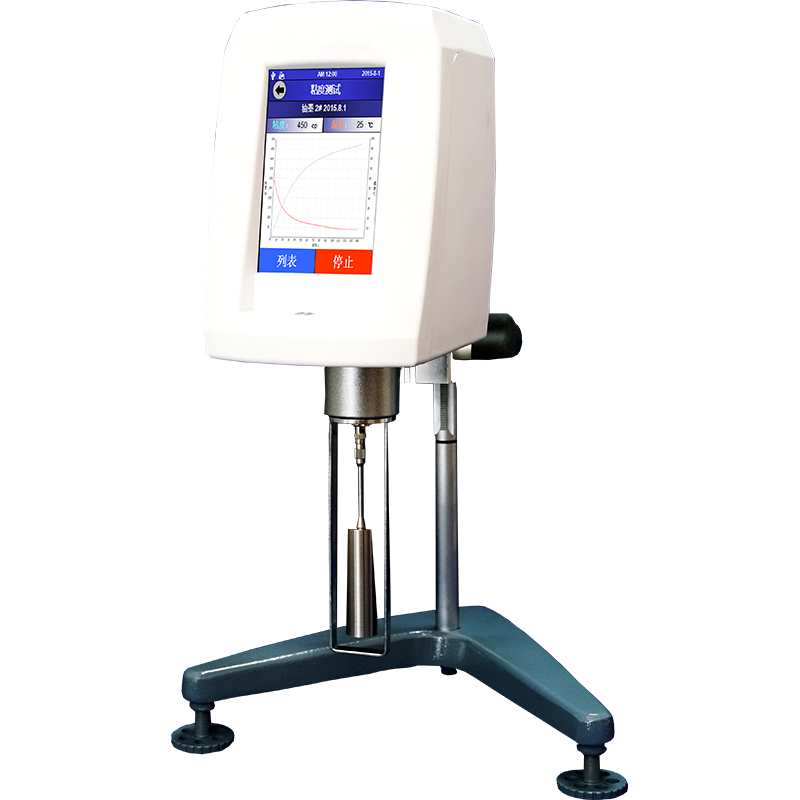

ACEY NDJ-9T Portable Laboratory Digital Electric Viscometer (1 – 100.000 mPa·s)

Control/Display mode: 5-inch color touch screen

Speed (r/min): 6/12/30/60

Measuring range mPa.s: 1～100000 (100,000) (For measuring ultra-low viscosity below 10, 0# rotor is required);

Rotor: 1-4# (standard configuration) 0# Rotor (optional)

Measurement error (Newtonian liquid): ±0.25%

Repeat error (Newtonian liquid): ±0.25%

Timing function: The standard configuration

Temperature measurement function: Standard temperature probe interface (optional temperature probe required)

Auto scan function: Automatically scan and recommend the best combination of rotor and speed

Display the maximum measurement range: Automatically display the measurable viscosity range of the selected rotor and speed combination

Display shear response/shear rate: Standard configuration

Automatic display of kinematic viscosity: Need to enter the density of the sample

Self-built measurement program: Up to 30 groups can be saved (including rotor, speed, temperature, time, etc.)

Save measurement results: Up to 30 sets of data (including viscosity, temperature, rotor, speed, shear rate, Shear stress, time, density, kinematic viscosity, etc.)

Viscosity curve: Real-time display of viscosity curve

Print: Data and curve can be printed (print interface is standard, printer is required)

Data output interface: Standard configuration

Thermostatic components: Options (including special constant temperature baths and constant temperature cups for various viscometers)

Power supply: Wide voltage operation (110V / 60Hz or 220V / 50Hz)

Dimensions: 300 × 300 × 450（mm）

1. Using ARM technology, built-in Linux system. The operation interface is concise and clear, through the creation of test programs and data.

Analysis, fast and convenient viscosity test.

2. The viscosity measurement value is accurate, and each range is automatically calibrated by computer, with high accuracy and small error.

3. Rich display content: In addition to viscosity, there are also temperature, shear rate, shear stress, measured value as a percentage of full scale value (graphic display), range overflow alarm, automatic scanning, the maximum measurement range under the current rotor speed combination, Date, time, etc. It can also display the kinematic viscosity when the density is known, which greatly meets the different measurement requirements of users.

4. Complete functions, can measure regularly, build 30 sets of test programs, access 30 sets of measurement data, and display viscosity in real time.

Curves, print data and curves, etc..

5. Front level meter, level adjustment is intuitive and convenient.

6. Optional temperature probe, special constant temperature bath for viscometer, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc..

7. Chinese and English operating system.
