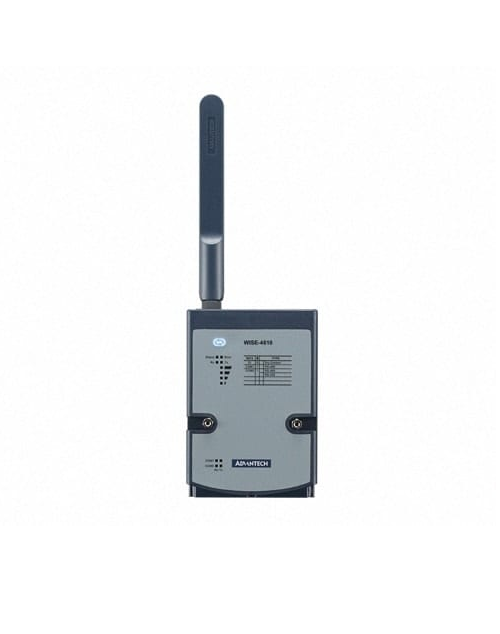

Advantech WISE-4610-S614 Industrial LoRa/LoRaWAN Wireless I/O Module

Wireless Communication

Standard: LoRaWAN or Private LoRa

Frequency Band: EU 863-870 (MHz) / US 902-928 (MHz) /AU 915-928 (MHz) / AS 919-924 (MHz) / JP 920-928 (MHz)

Spreading Factor: 7~12

Outdoor Range: 15Km (L.o.S) by pairing with WISE-6610 (with 2 dBi Antenna)

Transmit Power: Up to +18dBm

Receiver Sensitivity: Up to -136dBm at SF = 12 / 125KHz

Data Rate:

50 kbps at FSK mode EU868

21.9 kbps at SF7 mode US915

5.47 kbps at SF7 mode JP923

Topology: Star

Function: End Node

Antenna Type: External

Battery Life:6 months (1 hour data update with WISE-S617T, RS-485 Enable only)

Configuration Interface: Micro-B USB

LED Indicator: Status, Error, Tx, Rx,Battery/Signal Level

Mounting: DIN 35 rail, wall, pole, and stack

Dimension (W x H x D): 82 x 122 x 49 mm (without antenna)

WISE-S614(4AI/4DI)

Analog Input

Channels: 4

Resolution: 16-bit

Sampling Rate: 1Hz per channel

Accuracy:

±0.1% of FSR (Voltage)

±0.2% of FSR (Current)

Input Range: ±150mV, ±500mV, ±1 V, ±5V, ±10V, 0 ~ 150mV, 0 ~ 500mV, 0 ~ 1V, 0 ~ 5V, 0 ~ 10V, 0 ~ 20mA, 4 ~ 20mA , ±20mA

Input Impedance: > 2M Ω (Voltage)

240 Ω (External resistor for current)

Isolation Voltage: 2000 VDC

Common Mode Voltage: 350 VDC

Drift Unipolar: ±100ppm

Bipolar: ±50ppm

Burn-out Detection: Yes (4~20mA only)

Supports Data Scaling and Averaging

Digital Input

Channels: 4

Input Type: Dry Contact (Wet Contact by request)

Logic Level:

0: Open

1: Close to DI COM

Compatibility: 3.3V/TTL
