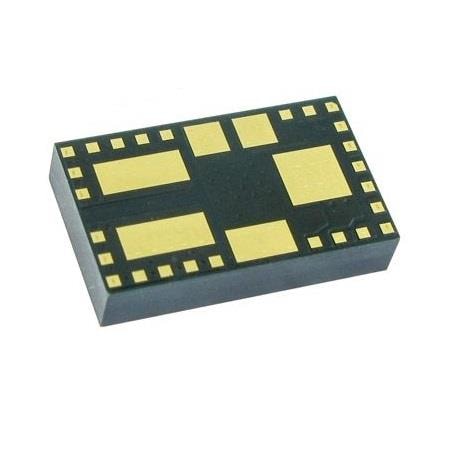

Analog Devices MAXM17546ALY# DC-DC 스텝다운 전원 모듈 4.5V-42V, 5A, 고효율, 동기식

Shutdown: Shutdown

Topology: Buck

Unit Weight: 7.671 g

Input Voltage: 4.5 V to 42 V

Mounting Style: SMD/SMT

Output Current: 5 A

Output Voltage: 900 mV to 12 V

Development Kit: MAXM17546EVKITB#

Load Regulation: 6 mV/A

Number of Outputs: 1 Output

Quiescent Current: 18 mA

Moisture Sensitive: Yes

Input Voltage - Max: 42 V

Input Voltage - Min: 4.5 V

Switching Frequency: 100 kHz to 2.2 MHz

Supply Voltage - Min: 4.5 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
