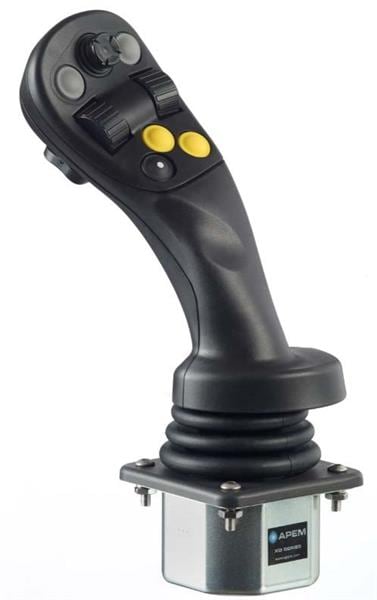

APEM XDRTT2MNNCABR77SAA 2축

Life: 10000000 Cycle

Features: One Momentary Back Plate Pushbutton Black, 1.24 Nm Operating Force, SAE CAN bus J1939-71 Output, Single Signal Faceplate Rollers, Spring Centering, Upper Face Plate Configuration- 6 Pushbutton, 2 Rollers

IP Rating: IP67

For Use With: Cranes, Reach Stackers, Telehanders, Wheeled Loaders

Panel Cutout: 66.29 mm x 66.29 mm

Actuator Style: Handle

Current Rating: 53 mA

Interface Type: CAN

Mounting Style: Panel Mount

Voltage Rating: 6 VDC to 35 VDC

Actuator Length: 210.4 mm

Switch Function: (ON) - OFF - (ON)

Termination Style: Screw

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
