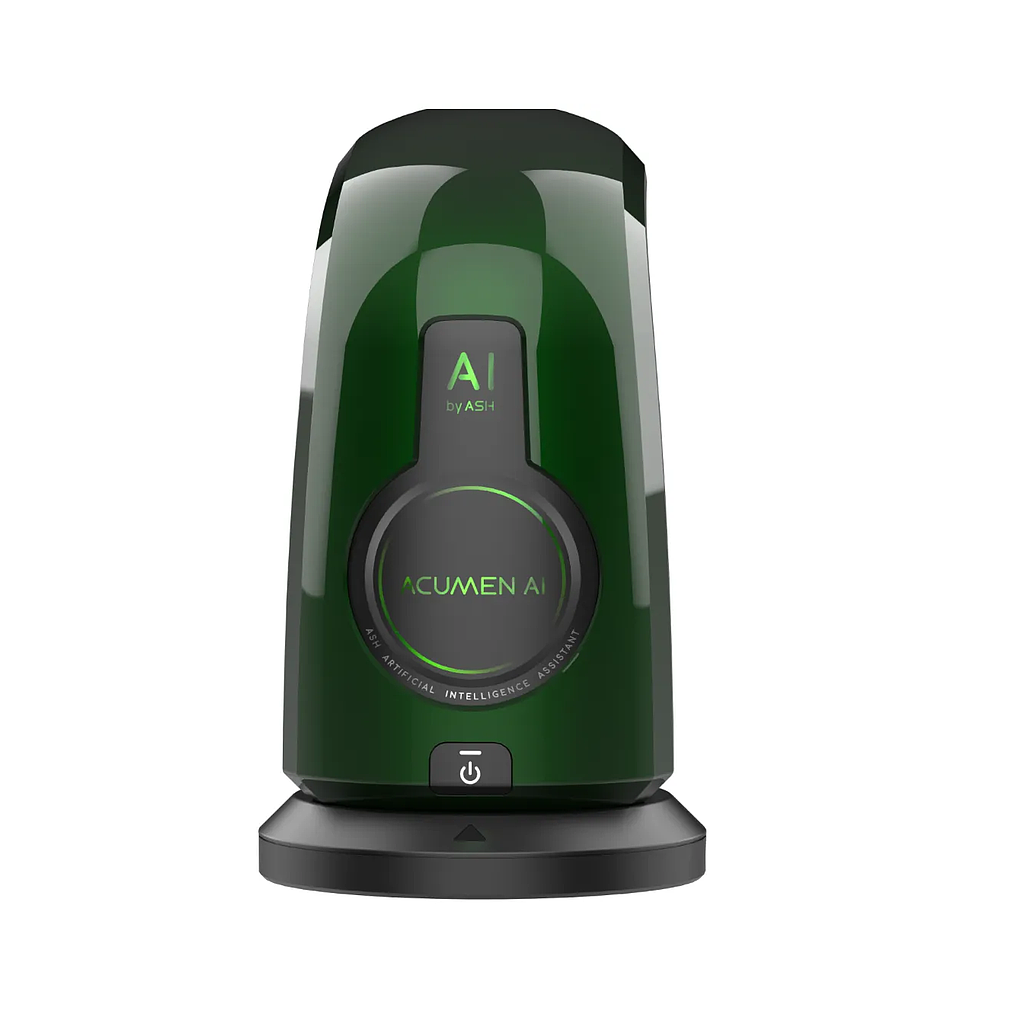

ASHVision Acumen AI Automated visual inspection and measurement system (2.5–68x; 1920 × 1080 pixel)

Magnification range (with supplied +5 lens): 2.5–68x (optical)

Digital magnification range: 69.0–136.5x

Camera resolution: 1920 × 1080 pixels

Frame rate: 50 / 60 fps

Monitor connections: HDMI / DVI

Monitor requirements: HD Ready / Full HD (recommended)

Input / Output:

– HDMI output

– USB 2.0 (4 ports)

– Mini USB port

– General purpose USB (3 ports)

– DC power jack 24V

Internal storage: 16 GB

Image capture:

– Internal storage

– Removable USB image storage

– USB On-the-Go (PC connectivity)

Power consumption: 24 W

Dimensions (L × W × H): 216 × 125 × 136 mm

Weight: 1.5 kg

Operating temperature:

– Storage: 60°C

– Operating: 5°C to 40°C
