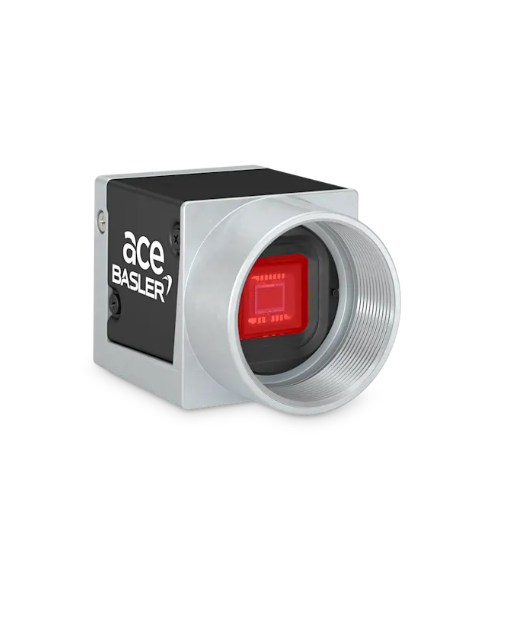

Basler acA2000-165uc Area Scan Camera (2040 x 1086 pixel; ams CMV2000-2E5C1BP)

Resolution (H x V Pixels): 2040 x 1086

Resolution: 2 MP

Sensor Type: ams CMV2000-2E5C1BP / Progressive scan CMOS / Global shutter

Sensor Format: 2/3 inch

Effective Sensor Diagonal: 12.8 mm

Pixel Size (H x V): 5.5 x 5.5 µm

Frame Rate (at Default Settings): 168 fps

Mono / Color: Color

Image Data Interface: USB 3.0, nominal max / 5 Gbit/s (SuperSpeed)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: ≈2.9 W (typical) @ 5 VDC / ≈3.2 W (max.)

I/O Lines: 1 opto-coupled input line / 1 opto-coupled output line / 2 general purpose I/O (GPIO) lines

Lens Mount: C-mount

Size (L x W x H): 29.3 x 29 x 29 mm (without lens mount or connectors) / 48.2 x 29 x 29 mm (with lens mount and connectors)

Weight: <80 g

The Basler acA2000-165uc USB 3.0 camera with the ams CMV2000 CMOS sensor delivers 165 frames per second at 2 MP resolution.
