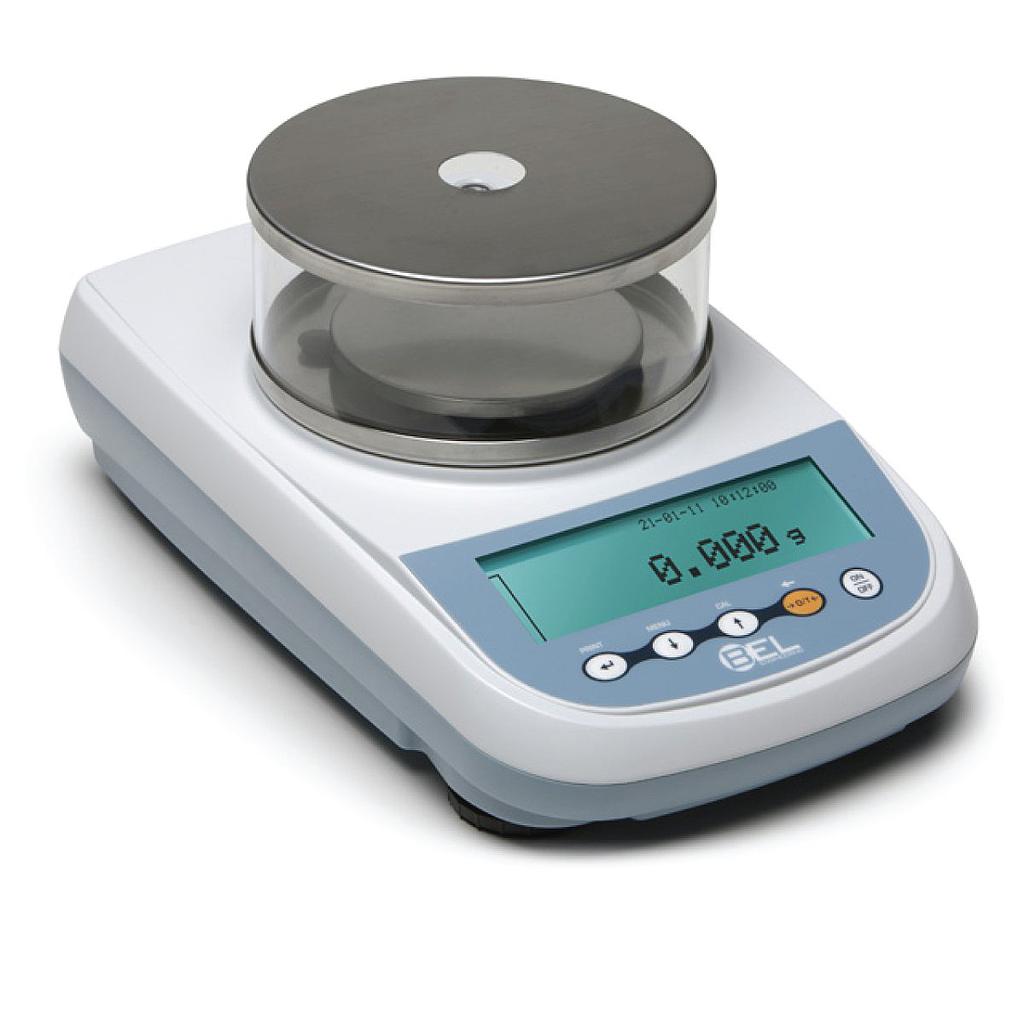

BEL Engineering LG1002 Precision Balance (1000g; 0.01g)

Capacity [Max]: 1000 g

Resolution [d]: 0.01 g

Calibration: External

Pan size: Ø 160 mm

Repeatability: 0.01 g

Response time (sec.): ≤3 s

Linearity: ±0.002 g

Verification: N/A

Minimum Load: 500 mg

Display: GRAPHIC

Tare Range (Subtractive): 1000 g

Span Drift In +10…+30°C: ±5 ppm/°C

Interface: RS232

Database Capacity: 99

Windshield Type And Dimensions: -

Working Temperature: 5–35°C (15–30°C for verified models)

Power Supply: 110–230 Vac, 50/60 Hz, output 9 V 1.2 A 10 VA

Power Consumption (Max): 1 W

Calibrates With (Class): 200 g (F1)

Balance Dimensions (W x L x H): 215 x 345 x 100 mm

Net Weight / Gross Weight, Approx.: 3.3 / 4.5 kg

Manual
