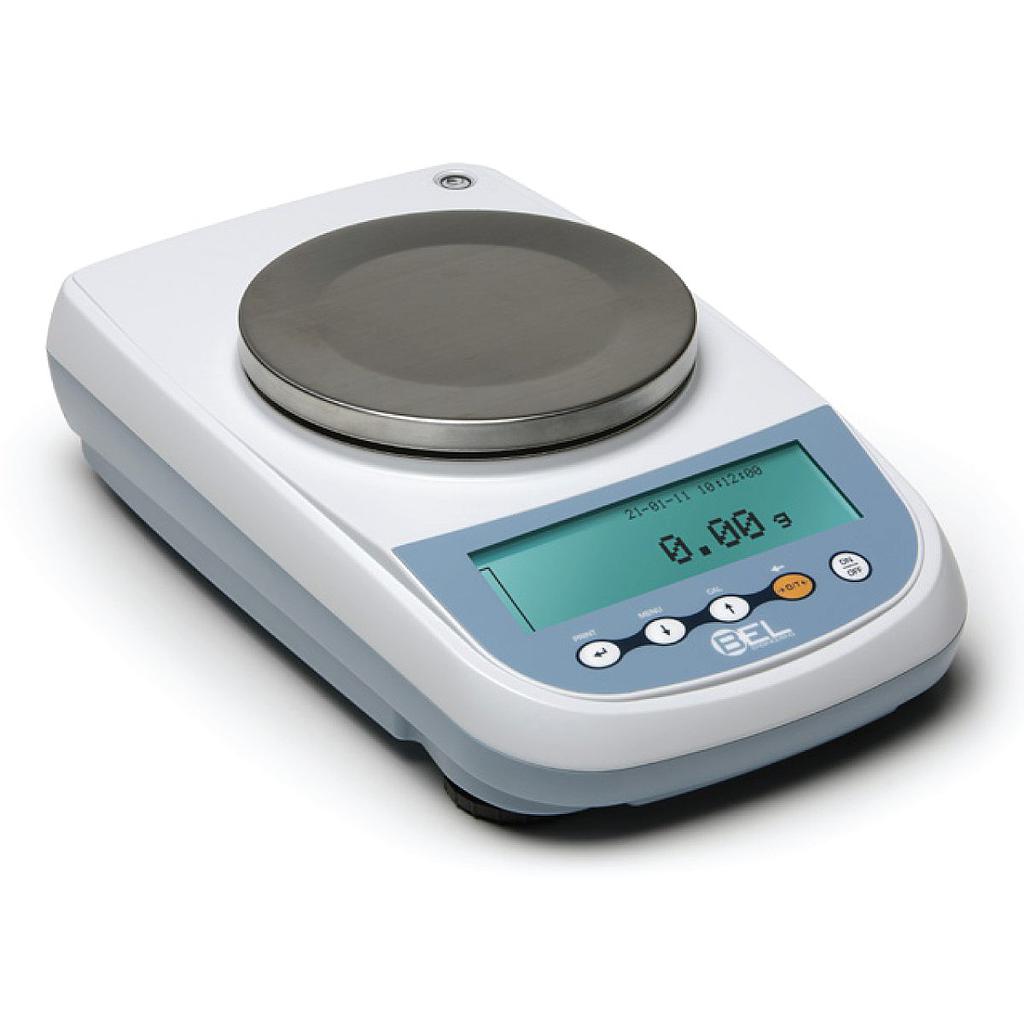

BEL Engineering MG5202 Precision Balance (5200g; 0.01g)

Capacity [Max]: 5200g

Resolution [d]: 0.01g

Calibration: External

Pan size: Ø 160mm

Linearity: ± 0.03g

Response time (sec.): ≤3

Repeatibility: 0.01g

Verification: N/A

Minimum Load: 500 mg

Display: GRAPHIC

Tare Range (Subtractive): 5200 g

Span Drift In +10…+30°C: ± 4 ppm/°C

Interface: RS232

Database Capacity: 99

Windshield Type And Dimensions: -

Working Temperature: 5 - 35°C (15-30°C for verified models)

Power Supply: 110-230Vac. 50/60Hz, output 24V 500mA 13VA

Power Consumption (Max): 2 Watt

Calibrates With (Class): 2000 g (F1)

Balance Dimensions (W X L X H): 215 x 345 x 100 mm

Net Weight / Gross Weight, Approx.: 4.6 / 6.6 Kg
