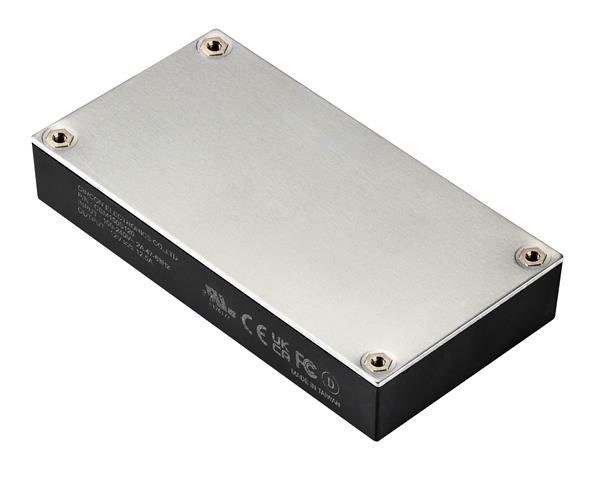

Cincon CBM150S240 AC-DC 브릭 150W 24V 6.25A

Width: 61 mm (2.402 in)

Height: 19.7 mm (0.776 in)

Length: 116.8 mm (4.598 in)

Industry: Industrial

Dimensions: 116.8 mm x 61 mm x 19.7 mm

Efficiency: 92 %

Output Power: 150 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 6.25 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 40 C
