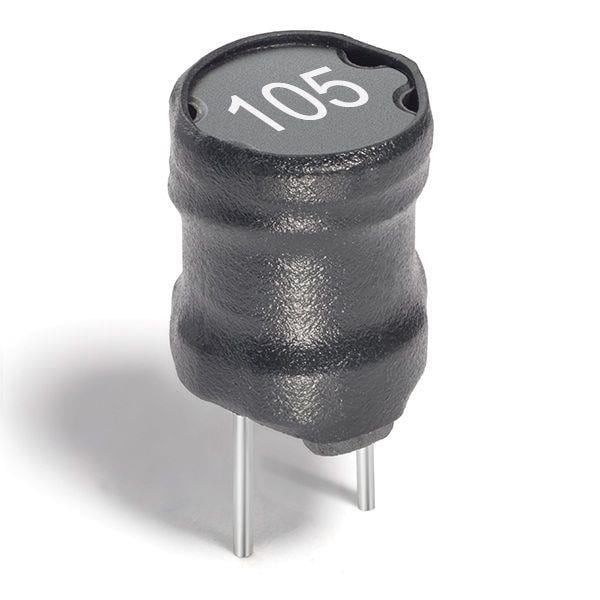

Coilcraft RFB0810-100L 파워 초크 10uH 언쉴드 10% 5.3A 30mOhms AECQ2

Length: 11.5 mm

Diameter: 9.5 mm

Shielding: Unshielded

Tolerance: 10 %

Inductance: 10 uH

Application: Automotive

Termination: Standard

Unit Weight: 3.320 g

Lead Spacing: 5 mm

Core Material: Ferrite

Lead Diameter: 0.6 mm

Qualification: AEC-Q200

Mounting Style: PCB Mount

Test Frequency: 100 kHz

Termination Style: Radial

Maximum DC Current: 5.3 A

Saturation Current: 4.2 A

Maximum DC Resistance: 30 mOhms

Self Resonant Frequency: 22 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
