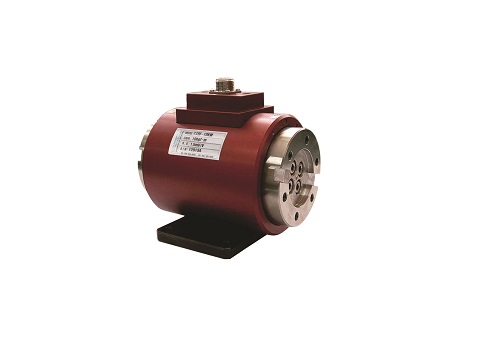

CURIOTEC CTRF-5KM Flange Type Rotary Torque Transducer (5 kgf.m)

Rated capacity (R.C): 5 kgf.m

Rated output (R.0): 1.5 mV/V

Non-linearity: ≤0.3 %RO

Hysteresis: ≤0.3 %RO

Non-Repeatability: ≤0.3 %RO

Terminal resistance( input): 350Ω ±1%

Terminal resistance (output): 350Ω ±1%

Insulation resistance: 2000  ㏁

Temp. effect on rated output: ≤0.1 %LOAD/10℃

Temp. effect on zero balance: ≤0.1 %RO/10℃

Excitation Voltage: 10 VDC

Safe overload: 150 %RC

Cable: Φ7 shield 5m
