Mission: Fixed-position radiation detector
Radiation Detector: 2" x 3" NaI(Tl) detector with PMT, He3 neutron detector
Energy Range: 40 keV - 3 MeV
Display: Large, intense LED displays
Power: 110V AC or 220V AC
Notification: .03 mR/hr above background radiation (audio/LED)
Response Time: < 1 Second
Calibration: Automatic
Dimensions: Detectors: 5" diam x 17.5"; Display box: 6.75" x 4.2" x 3"
Weight: Detectors: with lead shielding 27.5 lbs; no shielding 8.5 lbs; Display box: 1.5 lbs
Environment: Controlled environment or weather sealed, operates in high RF environments

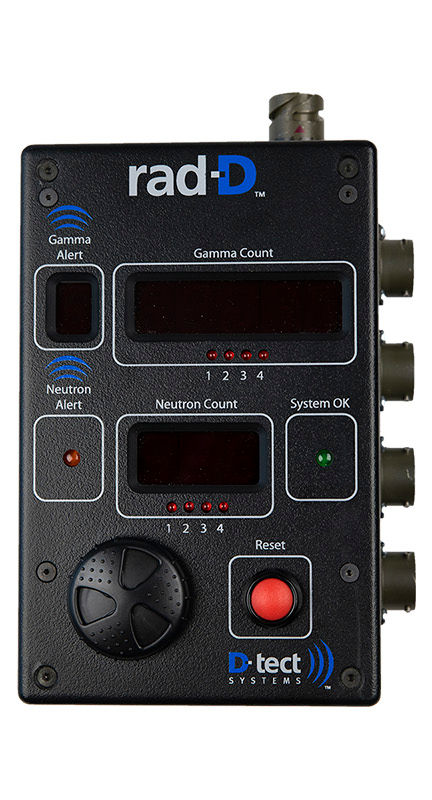

The Rad-D, a part of the D-Series, is a fixed-position radiation detector that is used to monitor doorways, driveways, and loading docks. A versatile device, it senses gamma and neutron detection in under a second and can trigger active responses such as halting conveyor belts or lowering a blockade.
