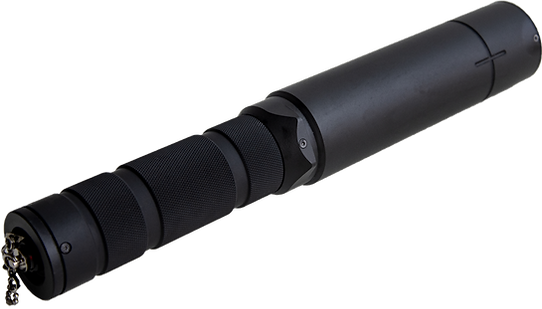

D-tect Systems V038313 Sensitive gamma probe (NSN: 6665-01-671-4250; - 50 - 5000 µR/hr)

Usage: Survey for gamma radiation

Radiological:

Detector type: NaI (TI) 1.125” x 1.5” Scintillator

Dose rate unit:

Count Rate - cpm, cps.

Exposure Rate - µR/hr

Detection range:

Gamma range - 50 - 5000 µR/hr

Gamma energy range - 50 keV - 1.5 MeV

Used for: Gamma and X-ray

Gamma sensitivity: 300 cpm/µR/hr for Cs-137, 140 cpm/µR/hr Co-60

Operational:

Display: RDS Base Unit

Alarm: Saved in Base Unit memory

Electrical:

Power: Supplied by RDS Base Unit

Mechanical:

Dimensions: 12.49” x 1.95” x 1.65” (32 x 5 x 4 cm)

Probe housing: Anodized aluminum

Weight: 1.3 lb. (0.58 kg)

Environmental:

Operating Temp.: -22° to 122° F (-30° to 50° C)

Storage Temp.: -58° to 140° F (-50° to 60° C)

Relative Humidity: 3% - 100%

Ingress Protection: IP67

Salt Fog: Resistant (MIL-STD 810G, Method 509.5)

Explosive Atmosphere: Intrinsically safe

Immersion: Water & salt water 1 meter deep - 30 min.

Cleaning: Decontaminate with mild detergent and water
