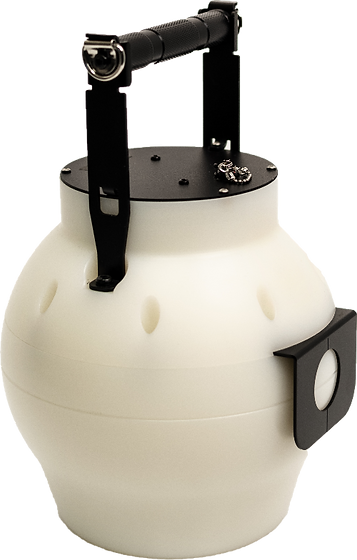

Usage: Survey for measuring neutron dose equivalent rate
Radiological
Detector Type: Advanced solid state neutron detection
Emitter: Neutron
Dose Rate Units: Count Rate - cpm, cps.
Dose/Exposure Rate - mRad/hr, µGy/hr, mrem/hr, µSv/hr,
Total Dose/Exposure - Mrad, µGy, mrem, µSv
Detection: Neutron energy range - thermal (0.025 eV) - 15 MeV
Dose Rate Range: 1 µRem/hr to 10 Rem/hr
Typical Sensitivity: 380 cpm per Rem/hr
Measurement Range: 0-10 Rem/h
Measurement Accuracy:
±25% for dose rates <1 mRem
±10% for dose rates ≥1 mRem
Gamma Rejection Ratio: 3000:1
Typical Background: < 1 cpm
Operational
Display: RDS Base Unit
Alarm: Saved in Base Unit memory
Electrical
Power: Powered by RDS Base Unit
25 mA maximum consumption
Mechanical
Dimensions: 8.3” x 8.3” x 12.4” (21 x 21 x 32 cm)
Probe housing: High Density Polyethylene (HDPE)
Weight: 11.8 lb. (5.33 kg)
Environmental
Operating Temp.: -22° to 122° F (-30° to 50° C)
Storage Temp.: -58° to 140° F (-50° to 60° C)
Relative Humidity: 3% - 100%
Ingress Protection: IP67
Salt Fog: Resistant (MIL-STD 810G, Method 509.5)
Explosive Atmosphere: Intrinsically safe
Immersion: Water & salt water 1 meter deep - 30 min.
Cleaning: Decontaminate with mild detergent and water
