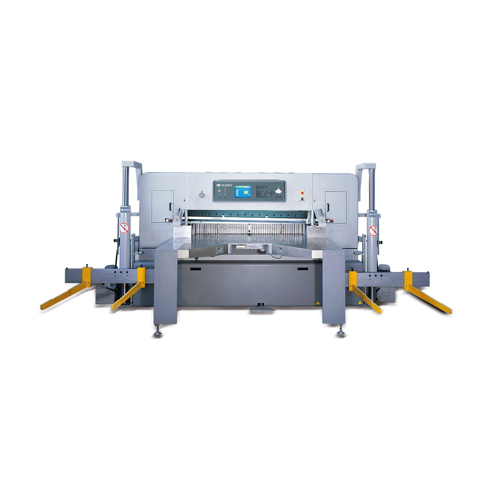

DATIEN CT-155E / 2L Computerized cutter (1150x165x1150mm; Cutter + Both Side Lifter)

Both Side Lifter ( Fork )

A Cutting Width: 1150 mm

B Cutting Height: 165 mm

C Cutting Length: 1150 mm

D Front Table Length: 750 mm

E Table Height: 900 mm

F Machine Width: 2900 mm

G Machine Height: 1680 mm

H Machine Length: 2700 mm

K Machine Front Length: 890 mm

Smallest Cut (with clamp): 90 mm

Smallest Cut (without clamp): 30 mm

Cutting Cycle Per Minute: 48

Clamp Pressure: 400 – 4000 kg (880 – 8800 lb)

Net Weight: 4100 kg

Main Motor: 5.6 kW (7.5 HP)

Backgauge Motor: 0.5 kW (0.69 HP)

Air Blower For Table: 0.75 kW (1 HP)

Power Requirement: 6.85 kW (9.19 HP)

※ Specification could be changed for improvement without prior notice.

Catalog
