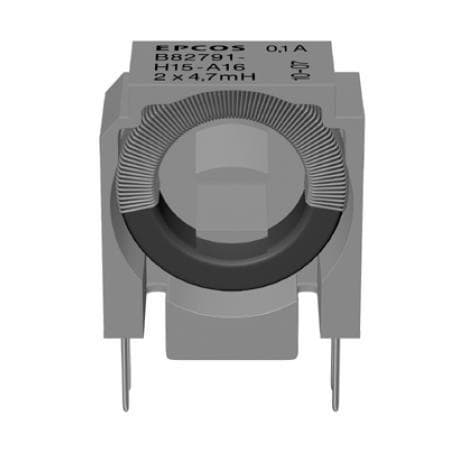

EPCOS B82791H0015A016 신호선 DATA LINE-CHOKE 2X4.7MH 0.1A

Width: 7.4 mm

Height: 17.6 mm

Length: 15.2 mm

Tolerance: - 25 %, + 35 %

Inductance: 4.7 mH

Unit Weight: 3 g

REACH - SVHC: Details

Mounting Style: Vertical Mount

Termination Style: Through Hole

Maximum DC Current: 100 mA

Number of Channels: 2 Channel

Maximum DC Resistance: 850 mOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
