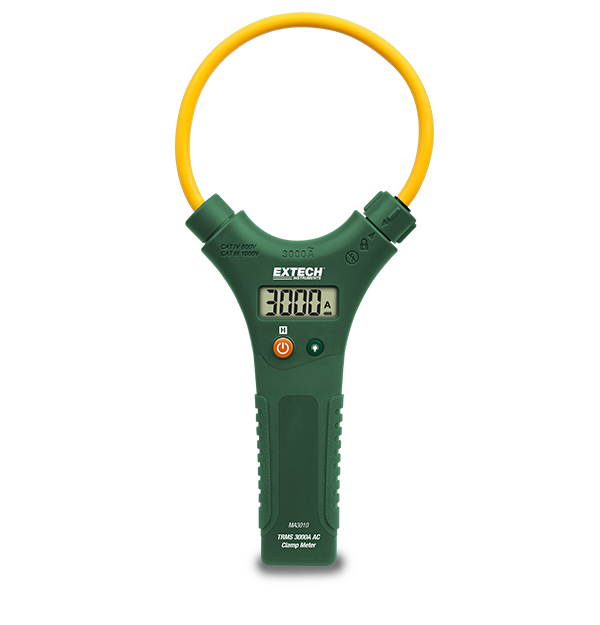

EXTECH MA3018 클램프 미터 (AC: 3000A, True RMS)

GENERAL SPECIFICATIONS

AC Current: 0 to 30.00A, 30.00 to 300.0A, 300.0 to 3000A

AC Current Basic Accuracy: ±(3% of reading + 5 digits)

AC Current Max Resolution: 0.01A

Jaw Size: 18" (45.7cm)

True RMS: Yes

ADDITIONAL DETAILS:

Certifications: CE, UL

Dimensions: 13.8 × 5.1 × 1" (350 × 130 × 25mm)

Display: 3000-count segment LCD with backlighting

Power: 2 × AAA (1.5V) batteries

Safety Category: CATIII - 1000V, CATIV - 600V

Weight: 7.1oz (200g)
