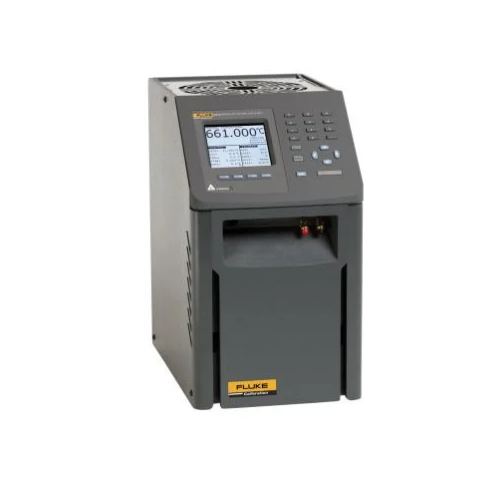

Fluke (Calibration) 9173-E 온도 교정기 (50°C ~ 700°C)

Temperature Range at 23 °C: 50°C to 700°C (122°F to 1292°F)

Display Accuracy:

 ±0.2°C: 50°C to 425°C

 ±0.25°C: 425°C to 660°C

Stability:

 ±0.005°C: 50°C to 100°C

 ±0.01°C: 100°C to 425°C

 ±0.03°C: 425°C to 700°C

Axial Uniformity :

 ±0.1°C: 50°C to 100°C

 ±0.25°C: 100°C to 425°C

 ±0.4°C: 425°C to 700°C

Hysteresis: 0.07 °C

Well Depth: 203 mm (8 in)

Resolution: 0.001 °C

Display: LCD, °C or °F user-selectable

Cooling Time: 235 min: 700°C to 50°C

Heating Time: 46 min: 50°C to 700°C

Size (H x W x D): 366 x 203 x 323 mm

Weight: 15 kg (33 Ib)

Power Requirements: 115 V ac (± 10 %), or 230 V ac (± 10 %), 50/60 Hz, 1025 W

Computer Interface: RS-232 Interface
