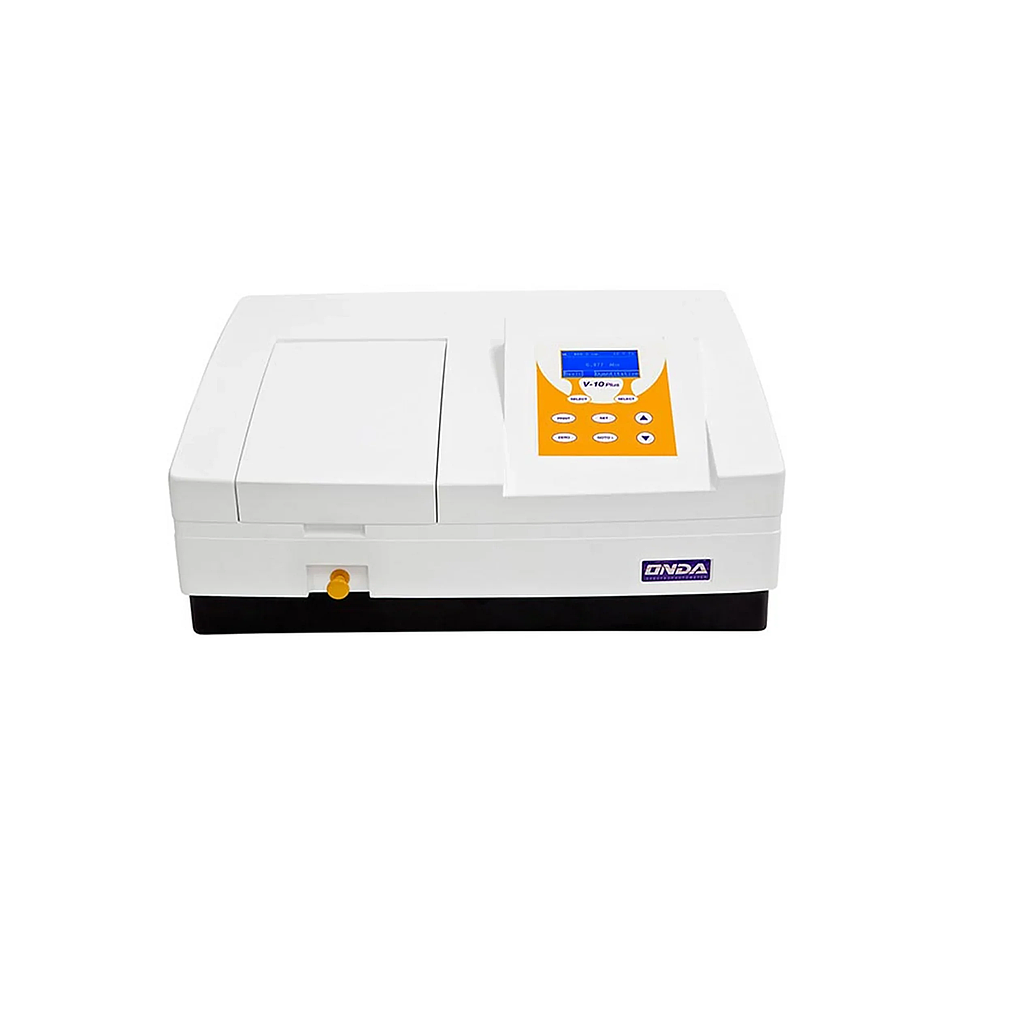

Giorgio Bormac V-10 VISIBLE spectrophotometer

Performance

Accuracy (photometric): ±0.3 (0-100) %T

Accuracy (wavelength): 0.8 nm

Bandwidth: 4 nm

Difused light: <0.3 %T

Photometric range: 0 - 200 %T

Abs photometric range: -0.3 - 3 Abs

Photometric range conc: 0 - 9999.9 Conc

Wavelength range: 325 - 1000 nm

Measuring range (UV/Visible): Visible

Photometric resolution: 0.001

Wavelength resolution: 0.1 nm

Stability: Tungsten-halogen

Features

Connection: USB-B / RS-232

Display: LCD màn hình 128 x 64 px

Basic photometry: Yes

File Management: Yes

Communication interfaces: Membrane keyboard

Language: English

Memory: 200 data sets

Quantitative: Yes

Detector: Silicon photodiodes

Optical system: Single beam

Standard cell support: Manual 4 positions, cuvette optical path 10 mm

Sample compartment: Accessible from above

Feeds

Power supply: 100 - 240

Power: 75 W

Dimensions and weight

Dimensions (W x D x H): 490 x 360 x 210

Weight: 12 kg
