Storage: 50,000 data records
Measuring category: 600 V CAT III / 300 V CAT IV
System type: Single-phase & three-phase AC electrical systems
Voltage range: 65 … 500 V AC
Frequency range: 15.4 … 420 Hz
Loop & line impedance: Measurement with DC bias magnetization
Insulation resistance: Nominal voltage, variable or rising test voltage
Low-resistance measurement: Automatic polarity reversal
RCD testing: Types AC, A, A-EV, F, F-EV, B, B+, B-MI
Special RCCB testing: S, SRCD, PRCD, Schukomat, Sidos, G/R
RCCB testing in IT systems: Supported
RDC-DD testing: IEC 62955 compliant
RCMB testing: DIN EN 62752 compliant
IMD testing: Insulation monitoring devices
RCM testing: Residual current monitors
Earth resistance measurement: Mains & battery powered
Leakage current measurement: Via PRO-AB adapter
EV charging station testing: IEC 61851-1 (with PRO-TYP EM adapter)
Residual voltage measurement: EN 60204-1 compliant
Automatic test sequence: Yes
USB interface: Data transfer
USB push-print function: Direct output of measurement results

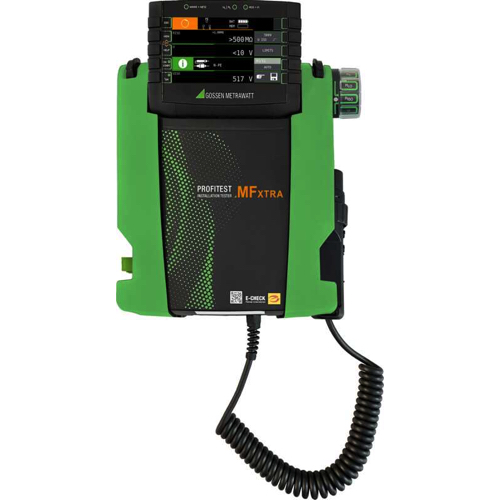

PROFITEST MF XTRA (M534Y) test instrument with green PROTECTIVE BUMPER (Z505M) and standard scope of delivery and IZYTRONIQ BUSINESS PROFESSIONAL (instead of IZYTRONIQ BUSINESS Starter)
