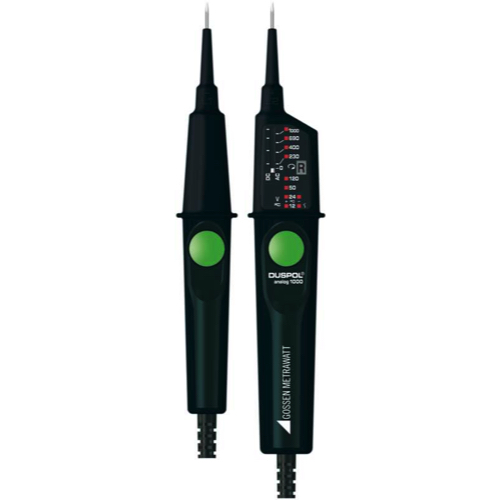

Gossen Metrawatt M611D Voltage Tester with Moving Coil Level Indicator (12 V ~ 1000 V AC/DC)

Voltage Range: 12 V to 1000 V AC/DC

Display Types: Moving coil (analog plunger) and LED levels

Display Levels: 12, 24, 50, 120, 230, 400, 690, 1000 V

Load switched via pushbutton: IS = 600 mA (1000 V)

RCCB Tripping: Intentional tripping of 30 mA residual current circuit breakers

Testing Functions: Phase sequence test (LCD), single-pole phase test (LCD), and polarity test (LED)

Safety Feedback: Vibration alarm in the tester handle

Electrical Safety: CAT IV 600 V / CAT III 1000 V

Protection Rating: IP65 (dust-proof and protected against water jets)

Power Supply: No batteries required (operates from the voltage source)

Standard Compliance: DIN EN 61243-3 and VDE 0682-401:2011-02

Housing: Rugged design with rubberized, ergonomic handles
