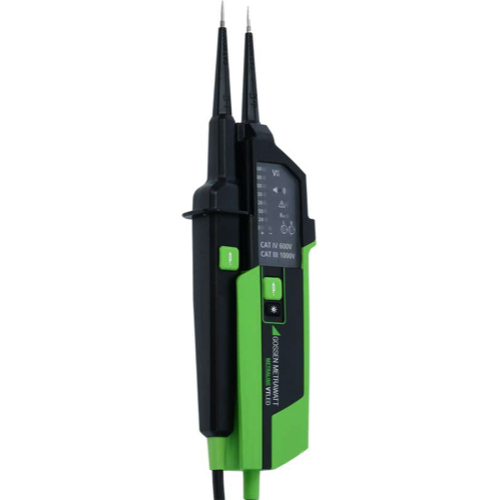

Gossen Metrawatt METRALINE VT LED 2-Pole Voltage Tester (12 V ~ 1000 V AC / 12 V ~ 1500 V DC)

Voltage Range: 12 V to 1000 V AC / 12 V to 1500 V DC

Display Type: LED for defined voltage ranges

Frequency Range: 16.7 Hz to 950 Hz

Testing Functions: Polarity display, Continuity test, Single-pole phase test, and Phase sequence (rotating field) display

RCD Tripping: 30 mA tripping test via two pushbuttons (load connection)

Safety Feedback: Vibration alarm in the presence of voltage

Illumination: Integrated flashlight for measuring points

Electrical Safety Category: CAT III 1000 V AC / 1500 V DC; CAT IV 600 V

Protection Rating: IP64 (dust-protected and splash-proof)

Special Features: Includes GS 38 test probe caps and screw-on test probe extensions for improved safety and reach

Datasheet

Delivery

1x METRALINE VT LED (M611G)

2x 4 mm test probe tip adapters (round contact pins) (in holder on test probe cap)

2x Screw-on safety caps for CAT IV 600 V / CAT III 1000 V / GS-38 (in holder on test probe cap)

1x Test probe cap (on cable)

2x Batteries (1.5 V, IEC AAA)

1x Operating instructions
