Protective Conductor Resistance (RPE): 10 A AC test current (Feature G01).

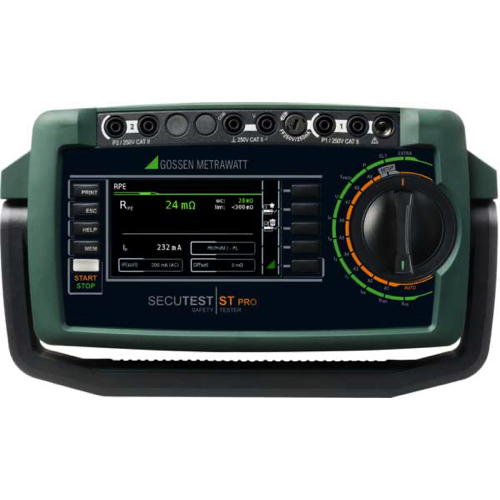

Touchscreen: High-speed data entry via integrated touchscreen.
Database Expansion: Includes SECUTEST DB+ (Z853R) for building/room structures.
User-Defined Sequences: Up to 24 custom sequences (1200 steps).
Voltage Measuring Input: 2 additional inputs (COM-V) for external measurements.
Multi-Print: One-key printing of all test reports for a DUT.
Report Customization: Template adjustable directly on the device with company logo.
Active Testing Capacity: Internal 16 A relays for load testing.
Leakage Current (IA): Applied part leakage current measurement.
Insulation Resistance: Range up to 300 MΩ.
High Resolution: 24-bit color depth on the TFT display.
Remote Control: Possible via PC using IZYTRONIQ.
Housing: Impact-resistant with integrated rubber protector.
Dimensions: 295 x 145 x 150 mm.
Weight: Approx. 2.5 kg.
Automatic Detection: Recognizes DUT connection and protection category.
Software: IZYTRONIQ Business Starter included.
USB Support: Full support for RFID scanners and USB keyboards.
Memory: 7.2 GB internal Flash for jobs/programs.
Safety: Automatic safety shutdown if residual current exceeds limits.
