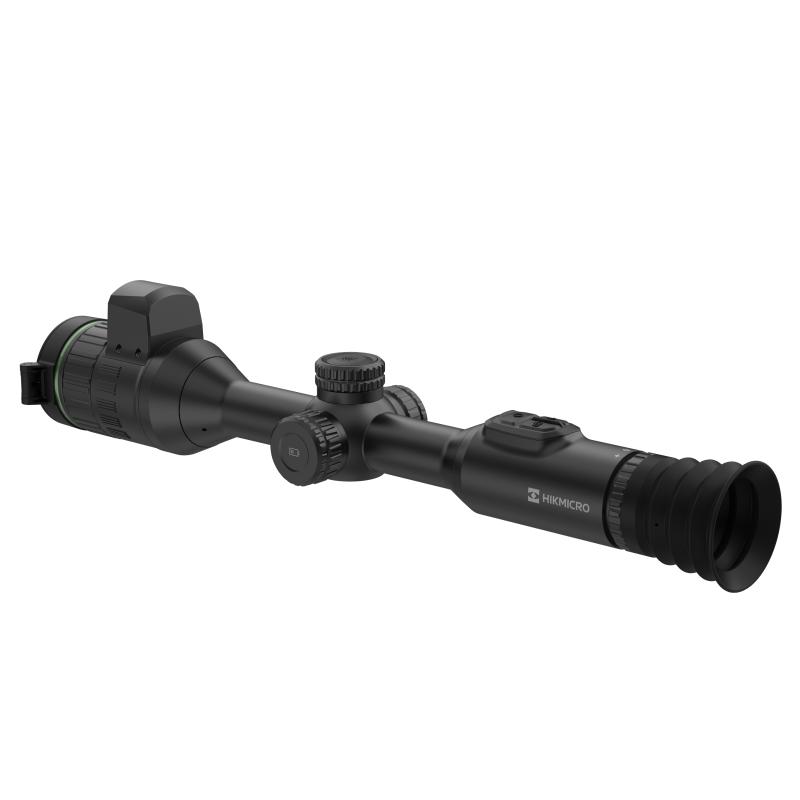

HIKMICRO A50EL Digital Day & Night Vision Scope (3840 × 2160)

Main

Max. Resolution 3840 × 2160

Frame Rate 50 Hz

Lens (Focal Length) 50 mm, F1.2 to 2.5 Adjustable Aperture

Detection Range Day: 1000 m

Min. Focusing Distance 10 m

Magnification: 3.5x to 28.0x (8x) Support Continuous Zooming

Field of View 8.8° × 5.0° / 15.3 m × 8.6 m @ 100 m

Image Display

Display 1920 × 1080, 0.49-inch OLED

Image Mode Day, Night

Exit Pupil 6 mm

Eye Relief 55 mm

Diopter (Range) -5 D to 5 D

System

Record Video On-board Video Recording

Record Video Resolution 1920 × 1080

Capture Snapshot Yes

Audio Recording Yes

Recoil-activation Recording Yes

Standby Mode Yes

Storage Built-in EMMC (64 GB)

PIP Yes

Freeze Zeroing Yes

Zeroing Profiles 5

Max. Recoil 1000 g/0.4 ms

Hotspot Yes

Ballistic Calculation Yes

Distance Measurement NA

Power Supply

Battery Type Two Rechargeable Lithium Batteries (Internal), One Replaceable and Rechargeable 18650 Battery (External)

Battery Operating Time 11 hours continuous running (@25°C, Hotspot off)

Power Supply 5 VDC / 2 A, USB Type-C interface

General

Mounting Standard 30 mm

Protection Level IP67

Working Temperature -30°C to 55°C (-22°F to 131°F)

Dimension 439.8 mm × 89.2 mm × 84.0 mm

Weight 1176 g without external battery

Laser Rangefinder

Safety Class for Laser Class 1

Wavelength 905 nm

Max. Measuring Range 1000 m

Measurement Accuracy ±1 m

Min. Measuring Range 10 m
